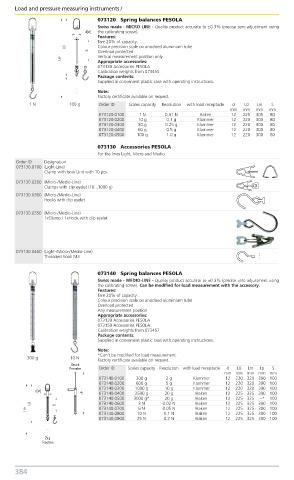

Page 390 - Benma | Blue book 5.0

Load and pressure measuring instruments / Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
073120 Spring balances PESOLA
Swiss made - MICRO LINE - Quality product accurate to ±0.3% (precise zero adjustment using
the calibrating screw).
Features:
Tare 20% of capacity.
Colour precision scale on anodised aluminium tube
Overload protected
Vertical measurement position only
Appropriate accessories:
073130 Accessories PESOLA
Calibration weights from 073455
Package contents:
Supplied in convenient plastic case with operating instructions.
Note:
Factory certificate available on request.
1 N 100 g Order ID Scales capacity Resolution with load receptacle d L0 Lm S
mm mm mm mm
073120.0100 1 N 0.01 N Haken 12 225 305 80
073120.0200 10 g 0.1 g Klammer 12 220 300 80
073120.0300 30 g 0.25 g Klammer 12 220 300 80
073120.0400 60 g 0.5 g Klammer 12 220 300 80
073120.0500 100 g 1.0 g Klammer 12 220 300 80
073130 Accessories PESOLA
For the lines Light, Micro and Medio
Order ID Designation
073130.0100 (Light-Line)
Clamp with bow Unit with 10 pcs.
073130.0200 (Micro-/Medio-Line)
Clamps with clip eyelet (10...1000 g)
073130.0300 (Micro-/Medio-Line)
Hooks with clip eyelet
073130.0350 (Micro-/Medio-Line)
1xClamp / 1xHook with clip eyelet

073130.0400 (Light-/Micro-/Medio-Line)
Threaded hook M3

073140 Spring balances PESOLA
Swiss made - MEDIO-LINE - Quality product accurate to ±0.3% (precise zero adjustment using
the calibrating screw). Can be modified for load measurement with the accessory.
Features:
Tare 20% of capacity.
Colour precision scale on anodised aluminium tube
Overload protected
Any measurement position
Appropriate accessories:
073130 Accessories PESOLA
073150 Accessories PESOLA
Calibration weights from 073457
Package contents:
Supplied in convenient plastic case with operating instructions.
Note:
*Can‘t be modified for load measurement.
300 g 10 N
Factory certificate available on request.
Order ID Scales capacity Resolution with load receptacle d L0 Lm Lp S
mm mm mm mm mm
073140.0100 300 g 2 g Klammer 12 220 320 300 100
073140.0200 600 g 5 g Klammer 12 220 320 300 100
073140.0300 1000 g 10 g Klammer 12 220 320 300 100
073140.0400 2500 g 20 g Haken 12 225 325 300 100
073140.0500 3000 g* 20 g Haken 12 225 325 --* 100
073140.0600 3 N 0.02 N Haken 12 225 325 300 100
073140.0700 6 N 0.05 N Haken 12 225 325 300 100
073140.0800 10 N 0.1 N Haken 12 225 325 300 100
073140.0900 25 N 0.2 N Haken 12 225 325 300 100
