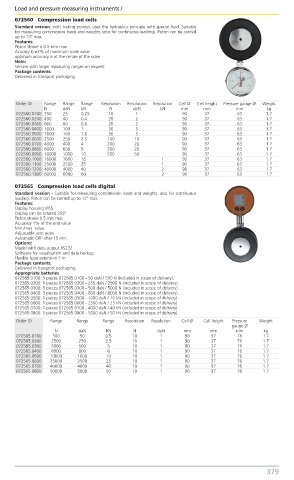

Load and pressure measuring instruments / Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
072560 Compression load cells
Standard version, with trailing pointer, uses the hydraulics principle with special fluid. Suitable
for measuring compression loads and weights (also for continuous loading). Piston can be canted
up to 13° max.
Features:
Piston stroke is 0.5 mm max
Acuracy is ±2% of maximum scale value
optimum accuracy is at the centre of the scale
Note:
Version with larger measuring ranges on request
Package contents:
Delivered in transport packaging

Order ID Range Range Range Resolution Resolution Resolution Cell Ø Cell height Pressure gauge Ø Weight
N daN kN N daN kN mm mm mm kg
072560.0100 250 25 0.25 10 1 90 37 63 1.7
072560.0200 400 40 0.4 20 2 90 37 63 1.7
072560.0300 600 60 0.6 20 2 90 37 63 1.7
072560.0400 1000 100 1 50 5 90 37 63 1.7
072560.0500 1600 160 1.6 50 5 90 37 63 1.7
072560.0600 2500 250 2.5 100 10 90 37 63 1.7
072560.0700 4000 400 4 200 20 90 37 63 1.7
072560.0800 6000 600 6 200 20 90 37 63 1.7
072560.0900 10000 1000 10 500 50 90 37 63 1.7
072560.1000 16000 1600 16 1 90 37 63 1.7
072560.1100 25000 2500 25 1 90 37 63 1.7
072560.1200 40000 4000 40 2 90 37 63 1.7
072560.1300 60000 6000 60 2 90 37 63 1.7

072565 Compression load cells digital
Standard version - Suitable for measuring compression loads and weights, also for continuous
loading. Piston can be canted up to 13° max.
Features:
Display housing IP65
Display can be rotated 355°
Piston stroke 0.5 mm max
Accuracy 1% of the end value
Min./max. value
Adjustable zero point
Automatic OFF after 15 min.
Options:
Model with data output RS232
Software for visualisation and data backup
Flexible hose extension 1 m
Package contents:
Delivered in transport packaging.
Appropriate batteries:
072565.0100: 1 pieces 072565.0100 - 50 daN / 500 N (included in scope of delivery).
072565.0200: 1 pieces 072565.0200 - 250 daN / 2500 N (included in scope of delivery).
072565.0300: 1 pieces 072565.0300 - 500 daN / 5000 N (included in scope of delivery).
072565.0400: 1 pieces 072565.0400 - 800 daN / 8000 N (included in scope of delivery).
072565.0500: 1 pieces 072565.0500 - 1000 daN / 10 kN (included in scope of delivery).
072565.0600: 1 pieces 072565.0600 - 2500 daN / 25 kN (included in scope of delivery).
072565.0700: 1 pieces 072565.0700 - 4000 daN / 40 kN (included in scope of delivery).
072565.0800: 1 pieces 072565.0800 - 5000 daN / 50 kN (included in scope of delivery).
Order ID Range Range Range Resolution Resolution Cell Ø Cell height Pressure Weight
gauge Ø
N daN kN N daN mm mm mm kg
072565.0100 500 50 0.5 10 1 90 37 76 1.7
072565.0200 2500 250 2.5 10 1 90 37 76 1.7
072565.0300 5000 500 5 10 1 90 37 76 1.7
072565.0400 8000 800 8 10 1 90 37 76 1.7
072565.0500 10000 1000 10 10 1 90 37 76 1.7
072565.0600 25000 2500 25 10 1 90 37 76 1.7
072565.0700 40000 4000 40 10 1 90 37 76 1.7
072565.0800 50000 5000 50 10 1 90 37 76 1.7
