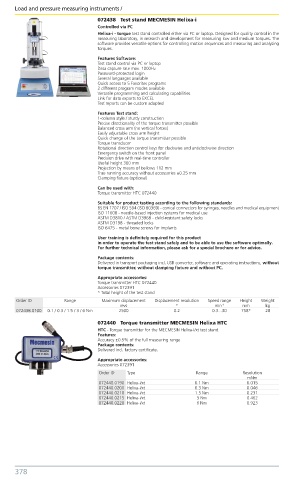

072438 Test stand MECMESIN Helixa-i
Controlled via PC
Helixa-i - torque test stand controlled either via PC or laptop. Designed for quality control in the
measuring laboratory, in research and development for measuring low and medium torques. The
software provides versatile options for controlling motion sequences and measuring and analysing
torques.
Features Software:
Test stand control via PC or laptop
Data capture rate max. 1000Hz
Password-protected login
Several languages available
Quick access to 5 Favorites programs
2 different program modes available
Versatile programming and calculating capabilities
Link for data exports to EXCEL
Test reports can be custom adapted
Features Test stand:
1-column style / sturdy construction
Precise directionality of the torque transmitter possible
Balanced cross arm (no vertical forces)
Easily adjustable cross arm height
Quick change of the torque transmitter possible
Torque transducer
Rotational direction control keys for clockwise and anticlockwise direction
Emergency switch on the front panel
Precision drive with real-time controller
Useful height 360 mm
Projection by means of bellows 112 mm
True running accuracy without accessories ±0.25 mm
Clamping fixture (optional)
Can be used with:
Torque transmitter HTC 072440
Suitable for product testing according to the following standards:
BS EN 1707 / ISO 594 (ISO 80369) - conical connectors for syringes, needles and medical equipment
ISO 11608 - needle-based injection systems for medical use
ASTM D3810 / ASTM D3968 - child-resistant safety locks
ASTM D3198 - threaded locks
ISO 6475 - metal bone screws for implants
User training is definitely required for this product
in order to operate the test stand safely and to be able to use the software optimally.
For further technical information, please ask for a special brochure or for advice.
Package contents:
Delivered in transport packaging incl. USB converter, software and operating instructions, without
torque transmitter, without clamping fixture and without PC.
Appropriate accessories:
Torque transmitter HTC 072440
Accessories 072391
* Total height of the test stand
Order ID Range Maximum displacement Displacement resolution Speed range Height Weight
revs ° min -1 mm kg
072438.0100 0.1 / 0.3 / 1.5 / 3 / 6 Nm 2500 0.2 0.3...30 758* 28
072440 Torque transmitter MECMESIN Helixa HTC
HTC - Torque transmitter for the MECMESIN Helixa-i/xt test stand.
Features:
Accuracy ±0.5% of the full measuring range
Package contents:
Delivered incl. factory certificate.
Appropriate accessories:
Accessories 072391
Order ID Type Range Resolution
mNm
072440.0190 Helixa-i/xt 0.1 Nm 0.015
072440.0200 Helixa-i/xt 0.3 Nm 0.046
072440.0210 Helixa-i/xt 1.5 Nm 0.231
072440.0215 Helixa-i/xt 3 Nm 0.462
072440.0220 Helixa-i/xt 6 Nm 0.923
