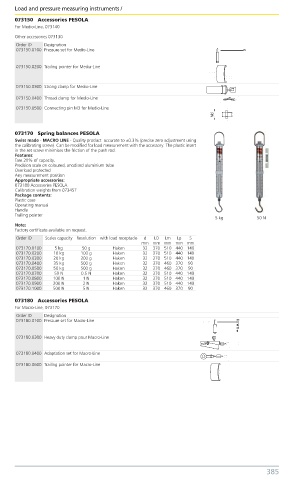

Page 391 - Benma | Blue book 5.0

Load and pressure measuring instruments / Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
073150 Accessories PESOLA
For Medio-Line, 073140
Other accessories 073130
Order ID Designation
073150.0100 Pressure set for Medio-Line

073150.0200 Trailing pointer for Media-Line

073150.0300 Strong clamp for Medio-Line
073150.0400 Thread clamp for Medio-Line
073150.0500 Connecting pin M3 for Medio-Line

073170 Spring balances PESOLA
Swiss made - MACRO LINE - Quality product accurate to ±0.3% (precise zero adjustment using
the calibrating screw). Can be modified for load measurement with the accessory. The plastic insert
in the set screw minimises the friction of the push rod.
Features:
Tare 20% of capacity.
Precision scale on coloured, anodised aluminium tube
Overload protected
Any measurement position
Appropriate accessories:
073180 Accessories PESOLA
Calibration weights from 073457
Package contents:
Plastic case
Operating manual
Handle
Trailing pointer
5 kg 50 N
Note:
Factory certificate available on request.
Order ID Scales capacity Resolution with load receptacle d L0 Lm Lp S
mm mm mm mm mm
073170.0100 5 kg 50 g Haken 32 370 510 440 140
073170.0200 10 kg 100 g Haken 32 370 510 440 140
073170.0300 20 kg 200 g Haken 32 370 510 440 140
073170.0400 35 kg 500 g Haken 32 370 460 370 90
073170.0500 50 kg 500 g Haken 32 370 460 370 90
073170.0700 50 N 0.5 N Haken 32 370 510 440 140
073170.0800 100 N 1 N Haken 32 370 510 440 140
073170.0900 200 N 2 N Haken 32 370 510 440 140
073170.1000 500 N 5 N Haken 32 370 460 370 90

073180 Accessories PESOLA
For Macro-Line, 073170
Order ID Designation
073180.0100 Pressure set for Macro-Line

073180.0300 Heavy duty clamp pour Macro-Line

073180.0400 Adaptation set for Macro-Line

073180.0600 Trailing pointer for Macro-Line

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 385
