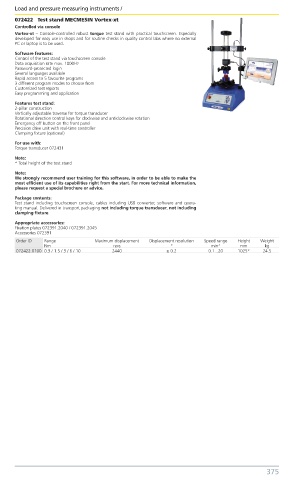

Load and pressure measuring instruments / Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
072422 Test stand MECMESIN Vortex-xt
Controlled via console
Vortex-xt – Console-controlled robust torque test stand with practical touchscreen. Especially
developed for easy use in shops and for routine checks in quality control labs where no external
PC or laptop is to be used.
Software features:
Control of the test stand via touchscreen console
Data acquisition rate max. 1000Hz
Password-protected login
Several languages available
Rapid access to 5 favourite programs
3 different program modes to choose from
Customized test reports
Easy programming and application
Features test stand:
2-pillar construction
Vertically adjustable traverse for torque transducer
Rotational direction control keys for clockwise and anticlockwise rotation
Emergency off button on the front panel
Precision drive unit with real-time controller
Clamping fixture (optional)
For use with:
Torque transducer 072431
Note:
* Total height of the test stand
Note:
We strongly recommend user training for this software, in order to be able to make the
most efficient use of its capabilities right from the start. For more technical information,
please request a special brochure or advice.
Package contents:
Test stand including touchscreen console, cables including USB converter, software and opera-
ting manual. Delivered in transport packaging not including torque transducer, not including
clamping fixture.
Appropriate accessories:
Fixation plates 072391.2040 / 072391.2045
Accessories 072391
Order ID Range Maximum displacement Displacement resolution Speed range Height Weight
Nm revs ° min -1 mm kg
072422.0100 0.3 / 1.5 / 3 / 6 / 10 2440 ± 0.2 0.1...20 1025* 24.5
