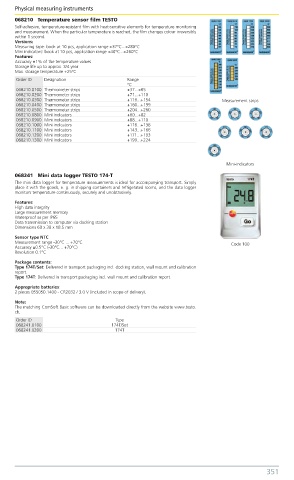

Page 357 - Benma | Blue book 5.0

Physical measuring instruments Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
068210 Temperature sensor film TESTO
Self-adhesive, temperature-resistant film with heat-sensitive elements for temperature monitoring
and measurement. When the particular temperature is reached, the film changes colour irreversibly
within 1 second.
Versions:
Measuring tape: book at 10 pcs, application range +37°C...+280°C
Mini indicators: book at 10 pcs, application range +40°C...+260°C
Features:
Accuracy ±1% of the temperature values
Storage life up to approx. 3/4 year
Max. storage temperature +25°C
Order ID Designation Range
°C
068210.0100 Thermometer strips +37...+65
068210.0200 Thermometer strips +71...+110
068210.0300 Thermometer strips +116...+154 Measurement strips
068210.0400 Thermometer strips +160...+199
068210.0500 Thermometer strips +204...+260
068210.0800 Mini indicators +60...+82
068210.0900 Mini indicators +88...+110
068210.1000 Mini indicators +116...+138
068210.1100 Mini indicators +143...+166
068210.1200 Mini indicators +171...+193
068210.1300 Mini indicators +199...+224

Mini-indicators

068241 Mini data logger TESTO 174-T
The mini data logger for temperature measurements is ideal for accompanying transport. Simply
place it with the goods, e. g. in shipping containers and refrigerated rooms, and the data logger
monitors temperature continuously, securely and unobtrusively.
Features:
High data integrity
Large measurement memory
Waterproof as per IP65
Data transmission to computer via docking station
Dimensions 60 x 38 x 18.5 mm
Sensor type NTC
Measurement range -30°C ... +70°C Code 100
Accuracy ±0.5°C (-30°C... +70°C)
Resolution 0.1°C
Package contents:
Type 174T/Set: Delivered in transport packaging incl. docking station, wall mount and calibration
report.
Type 174T: Delivered in transport packaging incl. wall mount and calibration report.
Appropriate batteries:
2 pieces 055050.1400 - CR2032 / 3.0 V (included in scope of delivery).
Note:
The matching ComSoft Basic software can be downloaded directly from the website www.testo.
ch.
Order ID Type
068241.0100 174T/Set
068241.0200 174T
