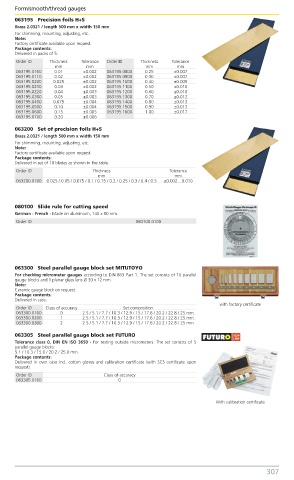

Form/smooth/thread gauges Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
063195 Precision foils H+S
Brass 2.0321 / length 500 mm x width 150 mm
For shimming, mounting, adjusting, etc.
Note:
Factory certificate available upon request.
Package contents:
Delivered in packs of 5.
Order ID Thickness Tolerance Order ID Thickness Tolerance
mm mm mm mm
063195.0100 0.01 ±0.002 063195.0800 0.25 ±0.007
063195.0110 0.02 ±0.002 063195.0900 0.30 ±0.007
063195.0200 0.025 ±0.002 063195.1000 0.40 ±0.009
063195.0210 0.03 ±0.002 063195.1100 0.50 ±0.010
063195.0220 0.04 ±0.003 063195.1200 0.60 ±0.010
063195.0300 0.05 ±0.003 063195.1300 0.70 ±0.012
063195.0400 0.075 ±0.004 063195.1400 0.80 ±0.013
063195.0500 0.10 ±0.004 063195.1500 0.90 ±0.013
063195.0600 0.15 ±0.005 063195.1600 1.00 ±0.017
063195.0700 0.20 ±0.006
063200 Set of precision foils H+S
Brass 2.0321 / length 500 mm x width 150 mm
For shimming, mounting, adjusting, etc.
Note:
Factory certificate available upon request.
Package contents:
Delivered in set of 10 blades as shown in the table.
Order ID Thickness Tolerance
mm mm
063200.0100 0.025 / 0.05 / 0.075 / 0.1 / 0.15 / 0.2 / 0.25 / 0.3 / 0.4 / 0.5 ±0.002…0.010

080100 Slide rule for cutting speed
German - French - Made on aluminium, 140 x 90 mm.
Order ID 080100.0100

063300 Steel parallel gauge block set MITUTOYO
For checking micrometer gauges according to DIN 863 Part 1. The set consists of 10 parallel
gauge blocks and 1 planar glass lens Ø 30 x 12 mm.
Note:
Ceramic gauge block on request.
Package contents:
Delivered in case.
with factory certificate
Order ID Class of accuracy Set composition
063300.0100 0 2.5 / 5.1 / 7.7 / 10.3 / 12.9 / 15 / 17.6 / 20.2 / 22.8 / 25 mm
063300.0200 1 2.5 / 5.1 / 7.7 / 10.3 / 12.9 / 15 / 17.6 / 20.2 / 22.8 / 25 mm
063300.0300 2 2.5 / 5.1 / 7.7 / 10.3 / 12.9 / 15 / 17.6 / 20.2 / 22.8 / 25 mm
063305 Steel parallel gauge block set FUTURO
Tolerance class 0, DIN EN ISO 3650 - For testing outside micrometers. The set consists of 5
parallel gauge blocks:
5.1 / 10.3 / 15.0 / 20.2 / 25.0 mm.
Package contents:
Delivered in own case incl. cotton gloves and calibration certificate (with SCS certificate upon
request).
Order ID Class of accuracy
063305.0100 0

With calibration certificate

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 307
