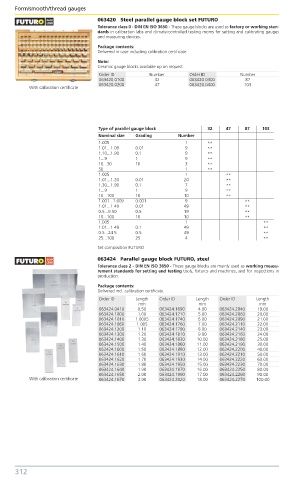

Form/smooth/thread gauges Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
063420 Steel parallel gauge block set FUTURO
Tolerance class 0 - DIN EN ISO 3650 - These gauge blocks are used as factory or working stan-
dards in calibration labs and climate-controlled testing rooms for setting and calibrating gauges
and measuring devices.
Package contents:
Delivered in case including calibration certificate.
Note:
Ceramic gauge blocks available up on request.
Order ID Number Order ID Number
063420.0100 32 063420.0300 87
063420.0200 47 063420.0400 103
With calibration certificate

Type of parallel gauge block 32 47 87 103
Nominal size Grading Number
1.005 1 **
1.01...1.09 0.01 9 **
1.10...1.90 0.1 9 **
1...9 1 9 **
10...30 10 3 **
50 1 **
1.005 1 **
1.01...1.20 0.01 20 **
1.30...1.90 0.1 7 **
1...9 1 9 **
10...100 10 10 **
1.001...1.009 0.001 9 **
1.01...1.49 0.01 49 **
0.5...9.50 0.5 19 **
10...100 10 10 **
1.005 1 **
1.01...1.49 0.1 49 **
0.5...24.5 0.5 49 **
25...100 25 4 **
Set composition FUTURO
063424 Parallel gauge block FUTURO, steel
Tolerance class 2 - DIN EN ISO 3650 - These gauge blocks are mainly used as working measu-
rement standards for setting and testing tools, fixtures and machines, and for inspections in
production.
Package contents:
Delivered incl. calibration certificate.
Order ID Length Order ID Length Order ID Length
mm mm mm
063424.0410 0.50 063424.1690 4.00 063424.2040 19.00
063424.1000 1.00 063424.1710 5.00 063424.2060 20.00
063424.1010 1.0005 063424.1740 6.00 063424.2090 21.00
063424.1060 1.005 063424.1760 7.00 063424.2110 22.00
063424.1200 1.10 063424.1790 8.00 063424.2140 23.00
063424.1300 1.20 063424.1810 9.00 063424.2160 24.00
063424.1400 1.30 063424.1830 10.00 063424.2180 25.00
063424.1500 1.40 063424.1860 11.00 063424.2190 30.00
063424.1600 1.50 063424.1880 12.00 063424.2200 40.00
063424.1610 1.60 063424.1910 13.00 063424.2210 50.00
063424.1620 1.70 063424.1930 14.00 063424.2220 60.00
063424.1630 1.80 063424.1950 15.00 063424.2230 70.00
063424.1640 1.90 063424.1970 16.00 063424.2250 80.00
063424.1650 2.00 063424.1990 17.00 063424.2260 90.00
With calibration certificate 063424.1670 3.00 063424.2020 18.00 063424.2270 100.00
