Form/smooth/thread gauges Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

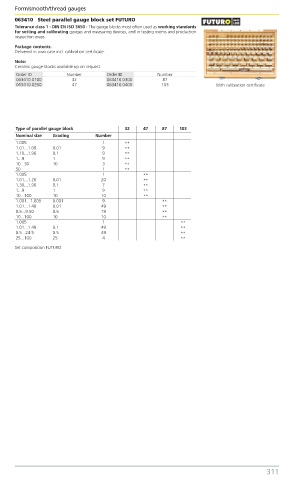

063410 Steel parallel gauge block set FUTURO
Tolerance class 1 - DIN EN ISO 3650 - The gauge blocks most often used as working standards
for setting and calibrating gauges and measuring devices, and in testing rooms and production
inspection areas.
Package contents:
Delivered in own case incl. calibration certificate.
Note:
Ceramic gauge blocks available up on request.
Order ID Number Order ID Number
063410.0100 32 063410.0300 87
063410.0200 47 063410.0400 103 With calibration certificate

Type of parallel gauge block 32 47 87 103
Nominal size Grading Number
1.005 1 **
1.01...1.09 0.01 9 **
1.10...1.90 0.1 9 **
1...9 1 9 **
10...30 10 3 **
50 1 **
1.005 1 **
1.01...1.20 0.01 20 **
1.30...1.90 0.1 7 **
1...9 1 9 **
10...100 10 10 **
1.001...1.009 0.001 9 **
1.01...1.49 0.01 49 **
0.5...9.50 0.5 19 **
10...100 10 10 **
1.005 1 **
1.01...1.49 0.1 49 **
0.5...24.5 0.5 49 **
25...100 25 4 **
Set composition FUTURO
