Form/smooth/thread gauges Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

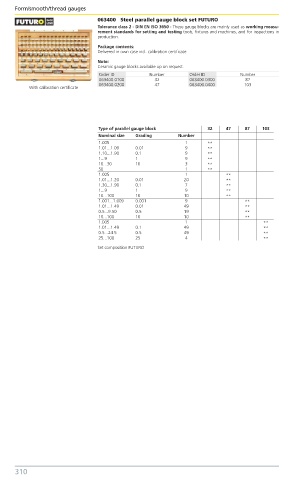

063400 Steel parallel gauge block set FUTURO
Tolerance class 2 - DIN EN ISO 3650 - These gauge blocks are mainly used as working measu-
rement standards for setting and testing tools, fixtures and machines, and for inspections in
production.
Package contents:
Delivered in own case incl. calibration certificate.
Note:
Ceramic gauge blocks available up on request.
Order ID Number Order ID Number
063400.0100 32 063400.0300 87
063400.0200 47 063400.0400 103
With calibration certificate

Type of parallel gauge block 32 47 87 103
Nominal size Grading Number
1.005 1 **
1.01...1.09 0.01 9 **
1.10...1.90 0.1 9 **
1...9 1 9 **
10...30 10 3 **
50 1 **
1.005 1 **
1.01...1.20 0.01 20 **
1.30...1.90 0.1 7 **
1...9 1 9 **
10...100 10 10 **
1.001...1.009 0.001 9 **
1.01...1.49 0.01 49 **
0.5...9.50 0.5 19 **
10...100 10 10 **
1.005 1 **
1.01...1.49 0.1 49 **
0.5...24.5 0.5 49 **
25...100 25 4 **
Set composition FUTURO
