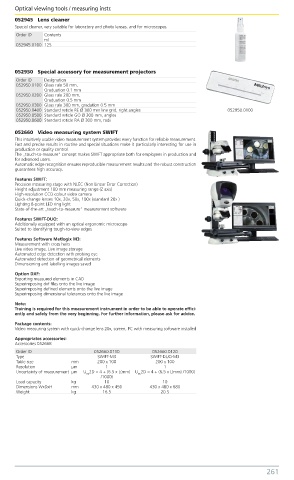

Page 267 - Benma | Blue book 5.0

Optical viewing tools / measuring instr. Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
052945 Lens cleaner
Special cleaner, very suitable for laboratory and photo lenses, and for microscopes.
Order ID Contents
ml
052945.0100 125

052950 Special accessory for measurement projectors
Order ID Designation
052950.0100 Glass rule 50 mm,
Graduation 0.1 mm
052950.0200 Glass rule 200 mm,
Graduation 0.5 mm
052950.0300 Glass rule 300 mm, gradation 0.5 mm
052950.0400 Standard reticle RE Ø 300 mm line grid, right angles 052950.0100
052950.0500 Standard reticle GO Ø 300 mm, angles
052950.0600 Standard reticle RA Ø 300 mm, radii
052660 Video measuring system SWIFT
This intuitively usable video measurement system provides every function for reliable measurement.
Fast and precise results in routine and special situations make it particularly interesting for use in
production or quality control.
The „touch-to-measure“ concept makes SWIFT appropriate both for employees in production and
for advanced users.
Automatic edge recognition ensures reproducible measurement results and the robust construction
guarantees high accuracy.
Features SWIFT:
Precision measuring stage with NLEC (Non Linear Error Correction)
Height adjustment 100 mm measuring range (Z axis)
High-resolution CCD colour video camera
Quick-change lenses 10x, 20x, 50x, 100x (standard 20x )
Lighting 8-point LED ring light
State-of-the-art „touch-to-measure“ measurement software
Features SWIFT-DUO:
Additionally equipped with an optical ergonomic microscope
Suited to identifying tough-to-view edges
Features Software Metlogix M3:
Measurement with cross hairs
Live video image, Live image storage
Automated edge detection with probing eye
Automated detection of geometrical elements
Dimensioning and labelling images saved
Option DXF:
Exporting measured elements in CAD
Superimposing dxf files onto the live image
Superimposing defined elements onto the live image
Superimposing dimensional tolerances onto the live image
Note:
Training is required for this measurement instrument in order to be able to operate effici-
ently and safely from the very beginning. For further information, please ask for advice.
Package contents:
Video measuring system with quick-change lens 20x, screen, PC with measuring software installed
Appropriates accessories:
Accessories 052668
Order ID 052660.0110 052660.0120
Type SWIFT-M3 SWIFT-DUO-M3
Table size mm 200 x 100 200 x 100
Resolution µm 1 1
Uncertainty of measurement µm U 2D = 4 + (6.5 x L(mm) U 2D = 4 + (6.5 x L(mm) /1000)
95 95
/1000)
Load capacity kg 10 10
Dimensions WxDxH mm 430 x 480 x 450 430 x 480 x 680
Weight kg 16.5 20.5
