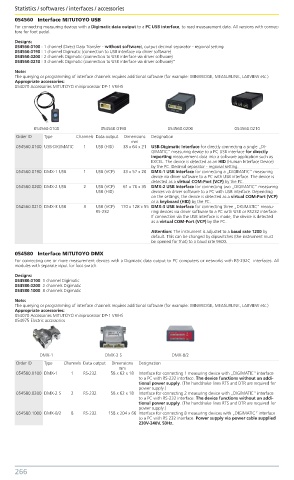

Statistics / softwares / interfaces / accessories Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
054560 Interface MITUTOYO USB
For connecting measuring devices with a Digimatic data output to a PC USB interface, to read measurement data. All versions with connec-
tore for foot pedal.
Designs:
054560.0100 : 1 channel (Direct Data Transfer - without software), output decimal separator - regional setting
054560.0190 : 1 channel Digimatic (connection to USB interface via driver software)
054560.0200 : 2 channels Digimatic (connection to USB interface via driver software)
054560.0210 : 3 channels Digimatic (connection to USB interface via driver software)“
Note:
The querying or programming of interface channels requires additional software (for example: WINWEDGE, MEASURLINK, LABVIEW etc.)
Appropriate accessories:
054070 Accessories MITUTOYO miniprocessor DP-1 VR/HS

054560.0100 054560.0190 054560.0200 054560.0210
Order ID Type Channels Data output Dimensions Designation
mm
054560.0100 USB-DIGIMATIC 1 USB (HID) 38 x 64 x 21 USB-Digimatic Interface for directly connecting a single „DI-
GIMATIC“ measuring device to a PC USB interface for directly
importing measurement data into a software application such as
EXCEL. The device is detected as an HID (Human Interface Device)
by the PC. Decimal separator - regional setting.
054560.0190 DMX-1 USB 1 USB (VCP) 33 x 57 x 20 DMX-1 USB Interface for connecting a „DIGIMATIC“ measuring
device via driver software to a PC with USB interface. The device is
detected as a virtual COM-Port (VCP) by the PC.
054560.0200 DMX-2 USB 2 USB (VCP) 61 x 76 x 35 DMX-2 USB Interface for connecting two „DIGIMATIC“ measuring
USB (HID) devices via driver software to a PC with USB interface. Depending
on the settings, the device is detected as a virtual COM-Port (VCP)
or a keyboard (HID) by the PC.
054560.0210 DMX-3 USB 3 USB (VCP) 170 x 128 x 55 DMX-3 USB Interface for connecting three „DIGIMATIC“ measu-
RS-232 ring devices via driver software to a PC with USB or RS232 interface.
If connection via the USB interface is made, the device is detected
as a virtual COM-Port (VCP) by the PC.
Attention: The instrument is adjustet to a baud rate 1200 by
default. This can be changed by dipswitches (the instrument must
be opened for that) to a baud rate 9600.
054580 Interface MITUTOYO DMX
For connecting one or more measurement devices with a Digimatic data output to PC computers or networks with RS-232C interfaces. All
modules with separate input for foot switch.
Designs:
054580.0100: 1 channel Digimatic
054580.0200: 2 channels Digimatic
054580.1000: 8 channels Digimatic
Note:
The querying or programming of interface channels requires additional software (for example: WINWEDGE, MEASURLINK, LABVIEW etc.)
Appropriate accessories:
054070 Accessories MITUTOYO miniprocessor DP-1 VR/HS
054975 Electric accessories

DMX-1 DMX-2 S DMX-8/2
Order ID Type Channels Data output Dimensions Designation
mm
054580.0100 DMX-1 1 RS-232 58 x 62 x 18 Interface for connecting 1 measuring device with „DIGIMATIC“ interface
to a PC with RS-232 interface. The device functions without an addi-
tional power supply. (The handshake lines RTS and DTR are required for
power supply.)
054580.0200 DMX-2 S 2 RS-232 58 x 62 x 18 Interface for connecting 2 measuring device with „DIGIMATIC“ interface
to a PC with RS-232 interface. The device functions without an addi-
tional power supply. (The handshake lines RTS and DTR are required for
power supply.)
054580.1000 DMX-8/2 8 RS-232 158 x 204 x 66 Interface for connecting 8 measuring devices with „DIGIMATIC“ interface
to a PC with RS 232 interface. Power supply via power cable supplied
230V-240V, 50Hz.
