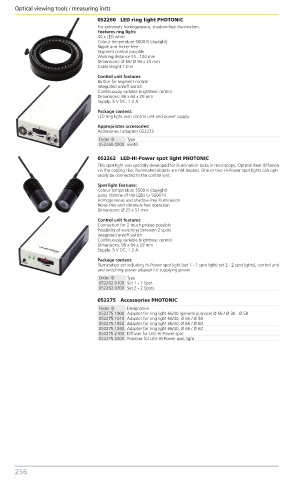

Page 262 - Benma | Blue book 5.0

Optical viewing tools / measuring instr. Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
052260 LED ring light PHOTONIC
For extremely homogeneous, shadow-free illumination.
Features ring light:
40 x LED white
Colour temperature 5000 K (daylight)
Ripple and flicker-free
Segment control possible
Working distance 55...120 mm
Dimensions: Ø 66/ Ø 94 x 25 mm
Cable lenght 1.0 m
Control unit features:
Button for segment control
Integrated on/off switch
Continuously variable brightness control
Dimensions: 96 x 64 x 29 mm
Supply: 5 V DC, 1.2 A
Package content:
LED ring light with control unit and power supply.
Appropriates accessories:
Accessories / adapters 052275
Order ID Type
052260.0200 66/40
052262 LED-Hi-Power spot light PHOTONIC
This spot light was specially developed for illumination tasks in microscopy. Optimal heat diffusion
via the cooling ribs; illuminated objects are not heated. One or two Hi-Power spot lights can opti-
onally be connected to the control unit.
Spot light features:
Colour temperature 5500 K (daylight)
Long lifetime of the LEDs (> 5000 h)
Homogeneous and shadow-free illumination
Noise-free and vibration-free operation
Dimensions: Ø 25 x 51 mm
Control unit features:
Connection for 2 touch probes possible
Possibility of switching between 2 spots
Integrated on/off switch
Continuously variable brightness control
Dimensions: 96 x 64 x 29 mm
Supply: 5 V DC, 1.2 A
Package content:
Illumination set including Hi-Power spot light (set 1 - 1 spot light/ set 2 - 2 spot lights), control unit
and switching power adapter for supplying power.
Order ID Type
052262.0100 Set 1 - 1 Spot
052262.0200 Set 2 - 2 Spots

052275 Accessories PHOTONIC
Order ID Designation
052275.1000 Adapter for ring light 66/40 (general purpose) Ø 66 / Ø 38...Ø 58
052275.1010 Adapter for ring light 66/40, Ø 66 / Ø 58
052275.1020 Adapter for ring light 66/40, Ø 66 / Ø 60
052275.1030 Adapter for ring light 66/40, Ø 66 / Ø 62
052275.2100 Diffuser for LED-Hi-Power spot
052275.2200 Polariser for LED-Hi-Power spot light
