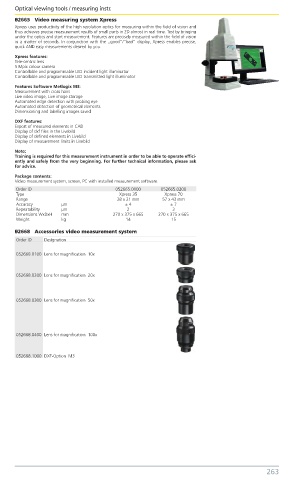

052665 Video measuring system Xpress
Xpress uses productivity of the high resolution optics for measuring within the field of vision and
thus achieves precise measurement results of small parts in 2D almost in real time. Test by bringing
under the optics and start measurement. Features are precisely measured within the field of vision
in a matter of seconds. In conjunction with the „good“/“bad“ display, Xpress enables precise,
quick AND easy measurements desired by you.
Xpress features:
Tele-centric lens
5 Mpix colour camera
Controllable and programmable LED incident light illuminator
Controllable and programmable LED transmitted light illuminator
Features Software Metlogix M3:
Measurement with cross hairs
Live video image, Live image storage
Automated edge detection with probing eye
Automated detection of geometrical elements
Dimensioning and labelling images saved
DXF features:
Export of measured elements in CAD
Display of dxf files in the Livebild
Display of defined elements in Livebild
Display of measurement limits in Livebild
Note:
Training is required for this measurement instrument in order to be able to operate effici-
ently and safely from the very beginning. For further technical information, please ask
for advice.
Package contents:
Video measurement system, screen, PC with installed measurement software.
Order ID 052665.0100 052665.0200
Type Xpress 35 Xpress 70
Range 28 x 21 mm 57 x 43 mm
Accuracy µm ± 4 ± 7
Repeatability µm 2 3
Dimensions WxDxH mm 270 x 375 x 665 270 x 375 x 665
Weight kg 14 15
052668 Accessories video measurement system
Order ID Designation
052668.0100 Lens for magnification 10x

052668.0200 Lens for magnification 20x

052668.0300 Lens for magnification 50x

052668.0400 Lens for magnification 100x

052668.1000 DXF-Option M3
