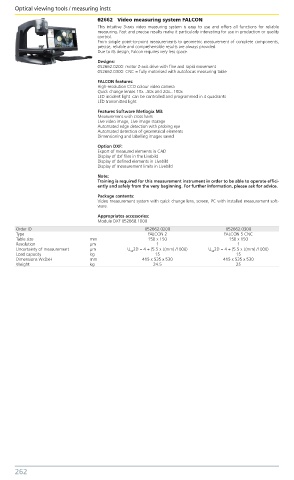

Page 268 - Benma | Blue book 5.0

Optical viewing tools / measuring instr. Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
052662 Video measuring system FALCON
This intuitive 3-axis video measuring system is easy to use and offers all functions for reliable
measuring. Fast and precise results make it particularly interesting for use in production or quality
control.
From simple point-to-point measurements to geometric measurement of complete components,
precise, reliable and comprehensible results are always provided.
Due to its design, Falcon requires very less space.
Designs:
052662.0200: motor Z-axis drive with fine and rapid movement
052662.0300: CNC = fully motorised with autofocus measuring table
FALCON features:
High-resolution CCD colour video camera
Quick change lenses 10x...50x and 20x...100x
LED incident light can be controlled and programmed in 4 quadrants
LED transmitted light
Features Software Metlogix M3:
Measurement with cross hairs
Live video image, Live image storage
Automated edge detection with probing eye
Automated detection of geometrical elements
Dimensioning and labelling images saved
Option DXF:
Export of measured elements in CAD
Display of dxf files in the Livebild
Display of defined elements in Livebild
Display of measurement limits in Livebild
Note:
Training is required for this measurement instrument in order to be able to operate effici-
ently and safely from the very beginning. For further information, please ask for advice.
Package contents:
Video measurement system with quick change lens, screen, PC with installed measurement soft-
ware.
Appropriates accessories:
Module DXF 052668.1000
Order ID 052662.0200 052662.0300
Type FALCON 2 FALCON 5 CNC
Table size mm 150 x 150 150 x 150
Resolution µm 1 1
Uncertainty of measurement µm U 2D = 4 + (5.5 x L(mm) /1000) U 2D = 4 + (5.5 x L(mm) /1000)
95
95
Load capacity kg 15 15
Dimensions WxDxH mm 415 x 535 x 530 415 x 535 x 530
Weight kg 24.5 25
