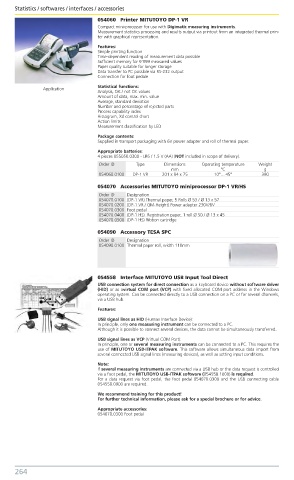

Statistics / softwares / interfaces / accessories Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
054060 Printer MITUTOYO DP-1 VR
Compact mini-processor for use with Digimatic measuring instruments.
Measurement statistics processing and results output via printout from an integrated thermal prin-
ter with graphical representation.
Features:
Simple printing function
Time-dependent reading of measurement data possible
Sufficient memory for 9‘999 measured values
Paper quality suitable for longer storage
Data transfer to PC possible via RS-232 output
Connection for foot pedale
Application Statistical functions:
Analysis, OK / not OK values
Amount of data, max. min. value
Average, standard deviation
Number and percentage of rejected parts
Process capability index
Histogram, Xd control chart
Action limits
Measurement classification by LED
Package contents:
Supplied in transport packaging with 6V power adapter and roll of thermal paper.
Appropriate batteries:
4 pieces 055050.0300 - LR6 / 1.5 V (AA) (NOT included in scope of delivery).
Order ID Type Dimensions Operating temperature Weight
mm °C g
054060.0100 DP-1 VR 201 x 94 x 75 10°....45° 390
054070 Accessories MITUTOYO miniprocessor DP-1 VR/HS
Order ID Designation
054070.0100 (DP-1 VR) Thermal paper, 5 Rolls Ø 53 / Ø 13 x 57
054070.0200 (DP-1 VR / QM-Height) Power adapter 230V/6V
054070.0300 Foot pedal
054070.0400 (DP-1 HS) Registration paper, 1 roll Ø 50 / Ø 13 x 45
054070.0500 (DP-1 HS) Ribbon cartridge
054090 Accessory TESA SPC
Order ID Designation
054090.0100 Thermal paper roll, width 110mm

054558 Interface MITUTOYO USB Input Tool Direct
USB connection system for direct connection as a keyboard device without software driver
(HID) or as avirtual COM port (VCP) with fixed allocated COM port address in the Windows
operating system. Can be connected directly to a USB connection on a PC or for several channels,
via a USB hub.
Features:
USB signal lines as HID (Human Interface Device):
In principle, only one measuring instrument can be connected to a PC.
Although it is possible to connect several devices, the data cannot be simultaneously transferred.
USB signal lines as VCP (Virtual COM Port):
In principle, one or several measuring instruments can be connected to a PC. This requires the
use of MITUTOYO USB-ITPAK software. This software allows simultaneous data import from
several connected USB signal lines (measuring devices), as well as setting input conditions.
Note:
If several measuring instruments are connected via a USB hub or the data request is controlled
via a foot pedal, the MITUTOYO USB-ITPAK software (054558.1000) is required.
For a data request via foot pedal, the foot pedal 054070.0300 and the USB connecting cable
054558.0900 are required.
We recommend training for this product!
For further technical information, please ask for a special brochure or for advice.
Appropriate accessories:
054070.0300 Foot pedal
