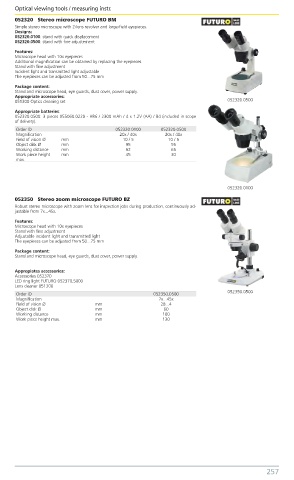

Page 263 - Benma | Blue book 5.0

Optical viewing tools / measuring instr. Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
052320 Stereo microscope FUTURO BM
Simple stereo microscope with 2-lens revolver and large-field eyepieces.
Designs:
052320.0100: stand with quick displacement
052320.0500: stand with fine adjustement
Features:
Microscope head with 10x eyepieces
Additional magnification can be obtained by replacing the eyepieces.
Stand with fine adjustment
Incident light and transmitted light adjustable
The eyepieces can be adjusted from 50...75 mm
Package content:
Stand and microscope head, eye guards, dust cover, power supply.
Appropriate accessories:
051300 Optics cleaning set 052320.0500
Appropriate batteries:
052320.0500: 3 pieces 055060.0220 - HR6 / 2300 mAh / 4 x 1.2V (AA) / B4 (included in scope
of delivery).
Order ID 052320.0100 052320.0500
Magnification 20x / 40x 20x / 40x
Field of vision Ø mm 10 / 5 10 / 5
Object disk Ø mm 95 95
Working distance mm 62 65
Work piece height mm 45 30
max.

052320.0100
052350 Stereo zoom microscope FUTURO BZ
Robust stereo microscope with zoom lens for inspection jobs during production, continuously ad-
justable from 7x...45x.
Features:
Microscope head with 10x eyepieces
Stand with fine adjustment
Adjustable incident light and transmitted light
The eyepieces can be adjusted from 50...75 mm
Package content:
Stand and microscope head, eye guards, dust cover, power supply.

Appropiates accessories:
Accessories 052370
LED ring light FUTURO 052370.5000
Lens cleaner 051300
052350.0500
Order ID 052350.0500
Magnification 7x...45x
Field of vision Ø mm 28...4
Object disk Ø mm 60
Working distance mm 100
Work piece height max. mm 130

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 257
