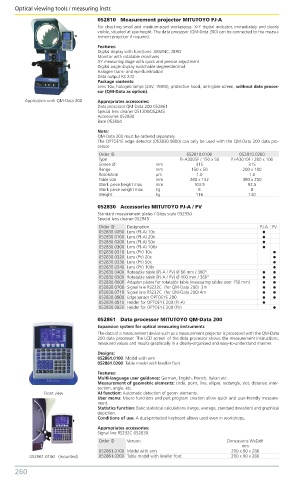

052810 Measurement projector MITUTOYO PJ-A
For checking small and medium-sized workpieces. X-Y digital indicator, immediately and clearly
visible, situated at eye-height. The data processor (QM-Data 200) can be connected to the measu-
rement projector if required.
Features:
Digital display with functions: ABS/INC, ZERO
Monitor with rotatable crosshairs
XY measuring stage with quick and precise adjustment
Digital angle display switchable degree/decimal
Halogen trans- and epi-illumination
Data output RS 232
Package contents:
Lens 10x, halogen lamps (24V, 150W), protective hood, anti-glare screen, without date proces-
sor (QM-Data as option).
Application with QM-Data 200 Appropriates accessories:
Data processor QM-Data 200 052861
Special lens cleaner 051300/052945
Accessories 052830
Base 052804
Note:
QM-Data 200 must be ordered separately.
The OPTOEYE edge detector (052830.0800) can only be used with the QM-Data 200 data pro-
cessor.
Order ID 052810.0100 052810.0200
Type PJ-A3005F / 150 x 50 PJ-A3010F / 200 x 100
Screen Ø mm 315 315
Range mm 150 x 50 200 x 100
Resolution µm 1.0 1.0
Table size mm 280 x 152 380 x 250
Work piece height max. mm 103.5 92.5
Work piece weight max. kg 8 8
Weight kg 116 140
052830 Accessories MITUTOYO PJ-A / PV
Standard measurement plates / Glass scale 052950
Special lens cleaner 052945
Order ID Designation PJ-A PV
052830.0050 Lens (PJ-A) 10x
052830.0100 Lens (PJ-A) 20x
052830.0200 Lens (PJ-A) 50x
052830.0300 Lens (PJ-A) 100x
052830.0310 Lens (PV) 10x
052830.0320 Lens (PV) 20x
052830.0330 Lens (PV) 50x
052830.0340 Lens (PV) 100x
052830.0400 Rotatable table (PJ-A / PV) Ø 66 mm / 360°
052830.0500 Rotatable table (PJ-A / PV) Ø 100 mm / 360°
052830.0600 Adapter plates for rotatable table (measuring tables over 150 mm)
052830.0700 Signal line RS232C (for QM-Data 200) 2m
052830.0710 Signal line RS232C (for QM-Data 200) 4m
052830.0800 Edge sensor OPTOEYE 200
052830.0810 Holder for OPTOEYE 200 (PJ-A)
052830.0820 Holder for OPTOEYE 200 (PV)

052861 Data processor MITUTOYO QM-Data 200
Expansion system for optical measuring instruments
The data of a measurement device such as a measurement projector is processed with the QM-Data
200 data processor. The LCD screen of the data processor shows the measurement instructions,
measured values and results graphically in a clearly-organised and easy-to-understand manner.
Designs:
052861.0100: Model with arm
052861.0200: Table model with leveller foot
Features:
Multi-language user guidance: German, English, French, Italian etc..
Measurement of geometric elements: circle, point, line, ellipse, rectangle, slot, distance, inter-
section, angle, etc.
Front view AI function: Automatic detection of geom. elements.
User menu: Macro functions and part program creation allow quick and user-friendly measure-
ment.
Statistics function: Basic statistical calculations (range, average, standard deviation) and graphical
depiction.
Conditions of use: A dust-protected keyboard allows used even in workshops.
Appropriates accessories:
Signal line RS232C 052830
Order ID Version Dimensions WxDxH
mm
052861.0100 Model with arm 200 x 90 x 280
052961.0100 (mounted) 052861.0200 Table model with leveller foot 200 x 90 x 280
