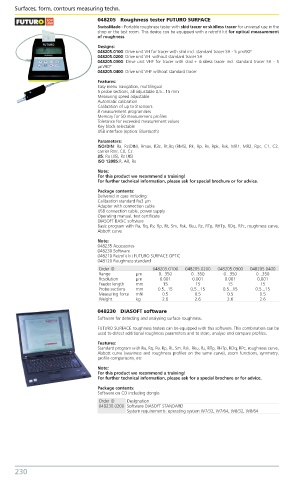

Page 236 - Benma | Blue book 5.0

Surfaces, form, contours measuring techn. Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
048205 Roughness tester FUTURO SURFACE
SwissMade - Portable roughness tester with skid tracer or skidless tracer for universal use in the
shop or the test room. This device can be equipped with a retrofit kit for optical measurement
of roughness.
Designs:
048205.0100: Drive unit VH for tracer with skid incl. standard tracer SH - 5 µm/90°
048205.0200: Drive unit VH without standard tracer SH
048205.0300: Drive unit VHF for tracer with skid + skidless tracer incl. standard tracer SH - 5
µm/90°
048205.0400: Drive unit VHF without standard tracer
Features:
Easy menu navigation, multilingual
5 probe sections, all adjustable 0.5...15 mm
Measuring speed adjustable
Automatic calibration
Calibration of up to 8 sensors
8 measurement programmes
Memory for 50 measurement profiles
Tolerance for exceeded measurement values
Key block selectable
USB interface (option: Bluetooth)
Parameters:
ISO/DIN: Ra, Rz(DIN), Rmax, R3z, Rt,Rq (RMS), Rk, Rp, Rv, Rpk, Rvk, MR1, MR2, Rpc, C1, C2,
carrier Rmr, C0, Cz
JIS: Ra (JIS), Rz (JIS)
ISO 12085:R, AR, Rx
Note:
For this product we recommend a training!
For further technical information, please ask for special brochure or for advice.
Package contents:
Delivered in case including:
Calibration standard Ra3 µm
Adapter with connection cable
USB connection cable, power supply
Operating manual, test certificate
DIASOFT BASIC software
Basic program with Ra, Rq, Rv, Rp, Rt, Sm, Rsk, Rku, Rz, RTp, RHTp, RDq, RPc, roughness curve,
Abbott curve
Note:
048235 Accessories
048230 Software
048210 Retrofit kit FUTURO SURFACE OPTIC
048120 Roughness standard
Order ID 048205.0100 048205.0200 048205.0300 048205.0400
Range µm 0...350 0...350 0...350 0...350
Resolution µm 0.001 0.001 0.001 0.001
Feeder length mm 15 15 15 15
Probe sections mm 0.5...15 0.5...15 0.5...15 0.5...15
Measuring force mN 0.5 0.5 0.5 0.5
Weight kg 2.6 2.6 2.6 2.6
048230 DIASOFT software
Software for detecting and analysing surface roughness.
FUTURO SURFACE roughness testers can be equipped with this software. This combination can be
used to detect additional roughness parameters and to store, analyse and compare profiles.
Features:
Standard program with Ra, Rq, Rv, Rp, Rt, Sm, Rsk, Rku, Rz, RTp, RHTp, RDq, RPc, roughness curve,
Abbott curve (waviness and roughness profiles on the same curve), zoom functions, symmetry,
profile comparisons, etc
Note:
For this product we recommend a training!
For further technical information, please ask for a special brochure or for advice.
Package contents:
Software on CD including dongle
Order ID Designation
048230.0200 Software DIASOFT STANDARD
System requirements: operating system W7/32, W7/64, W8/32, W8/64
