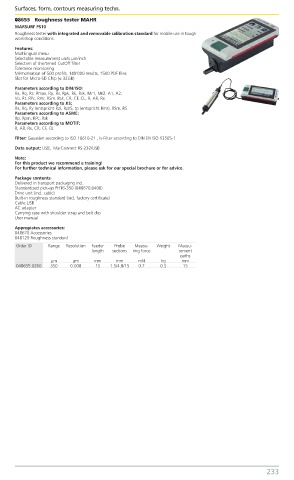

Page 239 - Benma | Blue book 5.0

Surfaces, form, contours measuring techn. Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
048655 Roughness tester MAHR
MARSURF PS10
Roughness tester with integrated and removable calibration standard for mobile use in tough
workshop conditions.
Features:
Multilingual menu
Selectable measurement units µm/inch
Selection of shortened CutOff filter
Tolerance monitoring
Mémorisation of 500 profils, 140‘000 results, 1500 PDF files
Slot for Micro-SD Chip (≤ 32GB)
Parameters according to DIN/ISO:
Ra, Rq, Rz, Rmax, Rp, Rv, Rpk, Rk, Rvk, Mr1, Mr2, A1, A2,
Vo, Rt, RPc, Rmr, RSm, Rsk, CR, CF, CL, R, AR, Rx
Parameters according to JIS:
Ra, Rq, Ry (entspricht Rz), RzJIS, tp (entspricht Rmr), RSm, RS
Parameters according to ASME:
Rp, Rpm, RPc, Rsk
Parameters according to MOTIF:
R, AR, Rx, CR, CF, CL
Filter: Gaussian according to ISO 16610-21 , Is-Filter according to DIN EN ISO 13565-1
Data output: USB, MarConnect RS-232/USB
Note:
For this product we recommend a training!
For further technical information, please ask for our special brochure or for advice.
Package contents:
Delivered in transport packaging incl.
Standardized pick-up PHT6-350 (048670.0400)
Drive unit (incl. cable)
Built-in roughness standard (incl. factory certificate)
Cable USB
AC adapter
Carrying case with shoulder strap and belt clip
User manual
Appropiates accessories:
048670 Accessories
048120 Roughness standard
Order ID Range Resolution Feeder Probe Measu- Weight Measu-
length sections ring force rement
paths
µm µm mm mm mN kg mm
048655.0200 350 0.008 15 1.5/4.8/15 0.7 0.5 15
