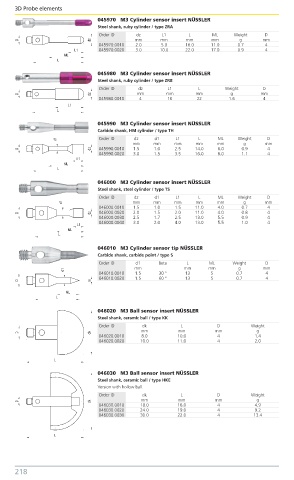

3D Probe elements Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
045970 M3 Cylinder sensor insert NÜSSLER
Steel shank, ruby cylinder / type ZRA
Order ID dz L1 L ML Weight D
mm mm mm mm g mm
045970.0010 2.0 5.0 16.0 11.0 0.7 4
045970.0020 3.0 10.0 22.0 17.0 0.9 4

045980 M3 Cylinder sensor insert NÜSSLER
Steel shank, ruby cylinder / type ZRB
Order ID dz L1 L Weight D
mm mm mm g mm
045980.0010 4 10 22 1.6 4

045990 M3 Cylinder sensor insert NÜSSLER
Carbide shank, HM cylinder / type TH
Order ID dz d1 L1 L ML Weight D
mm mm mm mm mm g mm
045990.0010 1.5 1.0 2.5 14.0 6.0 0.9 4
045990.0020 3.0 1.5 3.5 16.0 8.0 1.1 4

046000 M3 Cylinder sensor insert NÜSSLER
Steel shank, steel cylinder / type TS
Order ID dz d1 L1 L ML Weight D
mm mm mm mm mm g mm
046000.0010 1.5 1.0 1.5 11.0 4.0 0.7 4
046000.0020 2.0 1.5 2.0 11.0 4.0 0.8 4
046000.0030 2.5 1.7 2.5 13.0 5.5 0.9 4
046000.0040 3.0 2.0 4.0 13.0 5.5 1.0 4

046010 M3 Cylinder sensor tip NÜSSLER
Carbide shank, carbide point / type S
Order ID d1 Beta L ML Weight D
mm mm mm g mm
046010.0010 1.5 30 ° 13 5 0.7 4
046010.0020 1.5 60 ° 13 5 0.7 4

046020 M3 Ball sensor insert NÜSSLER
Steel shank, ceramic ball / type KK
Order ID dk L D Weight
mm mm mm g
046020.0010 8.0 10.0 4 1.4
046020.0020 10.0 11.0 4 2.0

046030 M3 Ball sensor insert NÜSSLER
Steel shank, ceramic ball / type HKE
Version with hollow ball.
Order ID dk L D Weight
mm mm mm g
046030.0010 18.0 16.0 4 4.9
046030.0020 24.0 19.0 4 9.2
046030.0030 30.0 22.0 4 13.4
