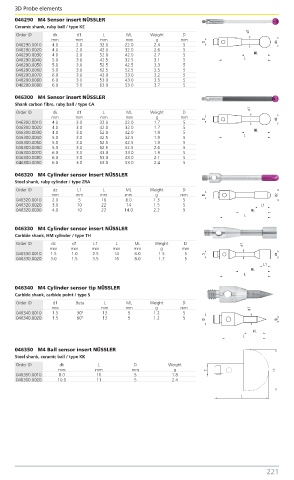

Page 227 - Benma | Blue book 5.0

3D Probe elements Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
046290 M4 Sensor insert NÜSSLER
Ceramic shank, ruby ball / type KE
Order ID dk d1 L ML Weight D
mm mm mm mm g mm
046290.0010 4.0 2.0 32.0 22.0 2.4 5
046290.0020 4.0 2.0 42.0 32.0 2.6 5
046290.0030 4.0 2.0 52.0 42.0 2.7 5
046290.0040 5.0 3.0 42.5 32.5 3.1 5
046290.0050 5.0 3.0 52.5 42.5 3.3 5
046290.0060 5.0 3.0 62.5 52.5 3.5 5
046290.0070 6.0 3.0 43.0 33.0 3.2 5
046290.0080 6.0 3.0 53.0 43.0 3.5 5
046290.0090 6.0 3.0 63.0 53.0 3.7 5
046300 M4 Sensor insert NÜSSLER
Shank carbon fibre, ruby ball / type CA
Order ID dk d1 L ML Weight D
mm mm mm mm g mm
046300.0010 4.0 3.0 32.0 22.0 1.7 5
046300.0020 4.0 3.0 42.0 32.0 1.7 5
046300.0030 4.0 3.0 52.0 42.0 1.9 5
046300.0040 5.0 3.0 42.5 32.5 1.9 5
046300.0050 5.0 3.0 52.5 42.5 1.9 5
046300.0060 5.0 3.0 62.5 52.5 2.0 5
046300.0070 6.0 3.0 43.0 33.0 1.9 5
046300.0080 6.0 3.0 53.0 43.0 2.1 5
046300.0090 6.0 3.0 63.0 53.0 2.4 5
046320 M4 Cylinder sensor insert NÜSSLER
Steel shank, ruby cylinder / type ZRA
Order ID dz L1 L ML Weight D
mm mm mm mm g mm
046320.0010 2.0 5 16 8.0 1.3 5
046320.0020 3.0 10 22 14 1.5 5
046320.0030 4.0 10 22 14.0 2.2 5

046330 M4 Cylinder sensor insert NÜSSLER
Carbide shank, HM cylinder / type TH
Order ID dz d1 L1 L ML Weight D
mm mm mm mm mm g mm
046330.0010 1.5 1.0 2.5 14 6.0 1.5 5
046330.0020 3.0 1.5 3.5 16 8.0 1.7 5

046340 M4 Cylinder sensor tip NÜSSLER
Carbide shank, carbide point / type S
Order ID d1 Beta L ML Weight D
mm mm mm g mm
046340.0010 1.5 30° 13 5 1.2 5
046340.0020 1.5 60° 13 5 1.2 5

046350 M4 Ball sensor insert NÜSSLER
Steel shank, ceramic ball / type KK
Order ID dk L D Weight
mm mm mm g
046350.0010 8.0 10 5 1.8
046350.0020 10.0 11 5 2.4

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 221
