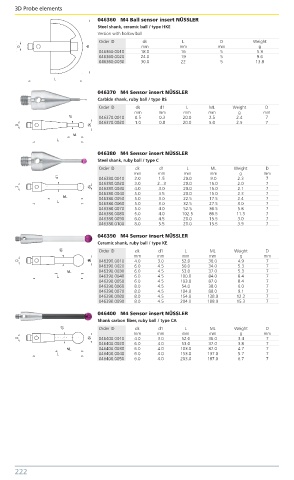

Page 228 - Benma | Blue book 5.0

3D Probe elements Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
046360 M4 Ball sensor insert NÜSSLER
Steel shank, ceramic ball / type HKE
Version with hollow ball
Order ID dk L D Weight
mm mm mm g
046360.0010 18.0 16 5 5.3
046360.0020 24.0 19 5 9.6
046360.0030 30.0 22 5 13.8

046370 M4 Sensor insert NÜSSLER
Carbide shank, ruby ball / type BS
Order ID dk d1 L ML Weight D
mm mm mm mm g mm
046370.0010 0.5 0.3 20.0 2.5 2.4 7
046370.0020 1.0 0.8 20.0 5.0 2.5 7

046380 M4 Sensor insert NÜSSLER
Steel shank, ruby ball / type C
Order ID dk d1 L ML Weight D
mm mm mm mm g mm
046380.0010 2.0 1.5 20.0 9.0 2.3 7
046380.0020 3.0 2...3 20.0 15.0 2.0 7
046380.0030 4.0 3.0 20.0 15.0 2.1 7
046380.0040 5.0 3.5 20.0 15.0 2.3 7
046380.0050 5.0 3.0 22.5 17.5 2.4 7
046380.0060 5.0 3.0 32.5 27.5 3.0 7
046380.0070 5.0 4.0 52.5 36.5 5.8 7
046380.0080 5.0 4.0 102.5 86.5 11.3 7
046380.0090 6.0 4.5 20.0 15.5 3.0 7
046380.0100 8.0 5.5 20.0 15.5 3.9 7

046390 M4 Sensor insert NÜSSLER
Ceramic shank, ruby ball / type KE
Order ID dk d1 L ML Weight D
mm mm mm mm g mm
046390.0010 4.0 3.0 52.0 36.0 4.9 7
046390.0020 6.0 4.5 50.0 34.0 5.3 7
046390.0030 6.0 4.5 53.0 37.0 5.3 7
046390.0040 6.0 4.5 100.0 84.0 8.4 7
046390.0050 6.0 4.5 103.0 87.0 8.4 7
046390.0060 8.0 4.5 54.0 38.0 6.0 7
046390.0070 8.0 4.5 104.0 88.0 9.1 7
046390.0080 8.0 4.5 154.0 138.0 12.2 7
046390.0090 8.0 4.5 204.0 188.0 15.3 7
046400 M4 Sensor insert NÜSSLER
Shank carbon fiber, ruby ball / type CA
Order ID dk d1 L ML Weight D
mm mm mm mm g mm
046400.0010 4.0 3.0 52.0 36.0 3.4 7
046400.0020 6.0 4.0 53.0 37.0 3.8 7
046400.0030 6.0 4.0 103.0 87.0 4.7 7
046400.0040 6.0 4.0 153.0 137.0 5.7 7
046400.0050 6.0 4.0 203.0 187.0 6.7 7

222 Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch
