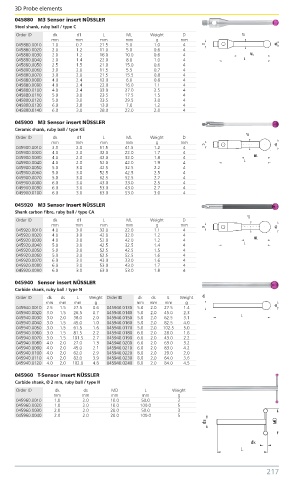

Page 223 - Benma | Blue book 5.0

3D Probe elements Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
045880 M3 Sensor insert NÜSSLER
Steel shank, ruby ball / type C
Order ID dk d1 L ML Weight D
mm mm mm mm g mm
045880.0010 1.0 0.7 21.5 5.0 1.0 4
045880.0020 2.0 1.2 11.0 5.0 0.6 4
045880.0030 2.0 1.2 16.0 10.0 0.6 4
045880.0040 2.0 1.4 22.0 8.0 1.0 4
045880.0050 2.5 1.5 21.0 15.0 0.6 4
045880.0060 3.0 2.0 11.5 5.5 0.7 4
045880.0070 3.0 2.0 21.5 15.5 0.8 4
045880.0080 4.0 2.4 12.0 6.0 0.8 4
045880.0090 4.0 2.4 22.0 16.0 1.1 4
045880.0100 4.0 2.4 33.0 27.0 2.5 4
045880.0110 5.0 3.0 23.5 17.5 1.5 4
045880.0120 5.0 3.0 33.5 29.5 3.0 4
045880.0130 6.0 2.8 13.0 7.0 1.2 4
045880.0140 6.0 3.0 28.0 22.0 2.0 4
045900 M3 Sensor insert NÜSSLER
Ceramic shank, ruby ball / type KE
Order ID dk d1 L ML Weight D
mm mm mm mm g mm
045900.0010 3.0 2.0 51.5 41.5 1.2 4
045900.0020 4.0 2.0 32.0 22.0 1.7 4
045900.0030 4.0 2.0 42.0 32.0 1.8 4
045900.0040 4.0 2.0 52.0 42.0 1.9 4
045900.0050 5.0 3.0 42.5 32.5 2.2 4
045900.0060 5.0 3.0 52.5 42.5 2.5 4
045900.0070 5.0 3.0 62.5 52.5 2.7 4
045900.0080 6.0 3.0 43.0 33.0 2.5 4
045900.0090 6.0 3.0 53.0 43.0 2.7 4
045900.0100 6.0 3.0 63.0 53.0 3.0 4
045920 M3 Sensor insert NÜSSLER
Shank carbon fibre, ruby ball / type CA
Order ID dk d1 L ML Weight D
mm mm mm mm g mm
045920.0010 4.0 3.0 32.0 22.0 1.1 4
045920.0020 4.0 3.0 42.0 32.0 1.2 4
045920.0030 4.0 3.0 52.0 42.0 1.2 4
045920.0040 5.0 3.0 42.5 32.5 1.4 4
045920.0050 5.0 3.0 52.5 42.5 1.5 4
045920.0060 5.0 3.0 62.5 52.5 1.6 4
045920.0070 6.0 3.0 43.0 33.0 1.6 4
045920.0080 6.0 3.0 53.0 43.0 1.7 4
045920.0090 6.0 3.0 63.0 53.0 1.8 4
045940 Sensor insert NÜSSLER
Carbide shank, ruby ball / type N
Order ID dk ds L Weight Order ID dk ds L Weight
mm mm mm g mm mm mm g
045940.0010 2.5 1.5 27.5 0.6 045940.0130 5.0 2.0 27.5 1.4
045940.0020 3.0 1.5 26.5 0.7 045940.0140 5.0 2.0 45.0 2.3
045940.0030 3.0 2.0 38.0 2.0 045940.0150 5.0 2.0 62.5 3.1
045940.0040 3.0 1.5 45.0 1.0 045940.0160 5.0 2.0 82.5 4.0
045940.0050 3.0 1.5 61.5 1.6 045940.0170 5.0 2.0 102.5 5.0
045940.0060 3.0 1.5 81.5 2.2 045940.0180 6.0 2.0 28.0 1.6
045940.0070 3.0 1.5 101.5 2.7 045940.0190 6.0 2.0 43.0 2.2
045940.0080 4.0 2.0 27.0 1.3 045940.0200 6.0 2.0 63.0 3.2
045940.0090 4.0 2.0 45.0 2.1 045940.0210 6.0 2.0 83.0 4.2
045940.0100 4.0 2.0 62.0 2.9 045940.0220 8.0 2.0 29.0 2.0
045940.0110 4.0 2.0 82.0 3.9 045940.0230 8.0 2.0 64.0 3.6
045940.0120 4.0 2.0 102.0 4.8 045940.0240 8.0 2.0 84.0 4.5

045960 T-Sensor insert NÜSSLER
Carbide shank, Ø 2 mm, ruby ball / type H
Order ID dk ds MD L Weight
mm mm mm mm g
045960.0010 1.0 2.0 10.0 50.0 3
045960.0020 1.0 2.0 10.0 100.0 5
045960.0030 2.0 2.0 20.0 50.0 3
045960.0040 2.0 2.0 20.0 100.0 5

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 217
