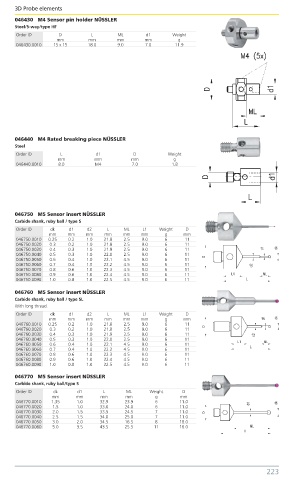

3D Probe elements Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
046430 M4 Sensor pin holder NÜSSLER
Steel/5-way/type HF
Order ID D L ML d1 Weight
mm mm mm mm g
046430.0010 15 x 15 18.0 9.0 7.0 11.9

046440 M4 Rated breaking piece NÜSSLER
Steel
Order ID L d1 D Weight
mm mm mm g
046440.0010 8.0 M4 7.0 1.8

046750 M5 Sensor insert NÜSSLER
Carbide shank, ruby ball / type S
Order ID dk d1 d2 L ML L1 Weight D
mm mm mm mm mm mm g mm
046750.0010 0.25 0.2 1.0 21.8 2.5 9.0 6 11
046750.0020 0.3 0.2 1.0 21.8 2.5 9.0 6 11
046750.0030 0.4 0.3 1.0 21.9 2.5 9.0 6 11
046750.0040 0.5 0.3 1.0 22.0 2.5 9.0 6 11
046750.0050 0.6 0.4 1.0 22.1 4.5 9.0 6 11
046750.0060 0.7 0.4 1.0 22.2 4.5 9.0 6 11
046750.0070 0.8 0.6 1.0 22.3 4.5 9.0 6 11
046750.0080 0.9 0.6 1.0 22.4 4.5 9.0 6 11
046750.0090 1.0 0.8 1.0 22.5 4.5 9.0 6 11
046760 M5 Sensor insert NÜSSLER
Carbide shank, ruby ball / type SL
With long thread.
Order ID dk d1 d2 L ML L1 Weight D
mm mm mm mm mm mm g mm
046760.0010 0.25 0.2 1.0 21.8 2.5 9.0 6 11
046760.0020 0.3 0.2 1.0 21.8 2.5 9.0 6 11
046760.0030 0.4 0.3 1.0 21.9 2.5 9.0 6 11
046760.0040 0.5 0.3 1.0 22.0 2.5 9.0 6 11
046760.0050 0.6 0.4 1.0 22.1 4.5 9.0 6 11
046760.0060 0.7 0.4 1.0 22.2 4.5 9.0 6 11
046760.0070 0.8 0.6 1.0 22.3 4.5 9.0 6 11
046760.0080 0.9 0.6 1.0 22.4 4.5 9.0 6 11
046760.0090 1.0 0.8 1.0 22.5 4.5 9.0 6 11
046770 M5 Sensor insert NÜSSLER
Carbide shank, ruby ball/type S
Order ID dk d1 L ML Weight D
mm mm mm mm g mm
046770.0010 1.35 1.0 32.9 23.9 6 11.0
046770.0020 1.5 1.0 33.0 24.0 6 11.0
046770.0030 2.0 1.5 33.5 24.5 7 11.0
046770.0040 2.5 1.5 34.0 25.0 7 11.0
046770.0050 3.0 2.0 34.5 16.5 8 18.0
046770.0060 5.0 3.5 43.5 25.5 11 18.0
