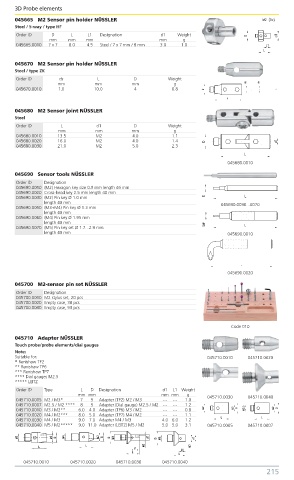

3D Probe elements Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
045665 M2 Sensor pin holder NÜSSLER
Steel / 5-way / type HF
Order ID D L L1 Designation d1 Weight
mm mm mm mm g
045665.0010 7 x 7 8.0 4.5 Steel / 7 x 7 mm / 8 mm 3.0 1.0

045670 M2 Sensor pin holder NÜSSLER
Steel / type ZK
Order ID ds L D Weight
mm mm mm g
045670.0010 1.0 10.0 4 0.8

045680 M2 Sensor joint NÜSSLER
Steel
Order ID L d1 D Weight
mm mm mm g
045680.0010 13.5 M2 4.0 1.1
045680.0020 16.0 M2 4.0 1.4
045680.0030 21.0 M2 5.0 2.3

045680.0010
045690 Sensor tools NÜSSLER
Order ID Designation
045690.0010 (M2) Hexagon key size 0.9 mm length 46 mm
045690.0020 Cross-head key 2.5 mm length 40 mm
045690.0030 (M2) Pin key Ø 1.0 mm
length 40 mm 045690.0030...0070
045690.0050 (M3+M4) Pin key Ø 1.3 mm
length 40 mm
045690.0060 (M4) Pin key Ø 1.95 mm
length 40 mm
045690.0070 (M5) Pin key set Ø 1.7...2.9 mm
length 40 mm 045690.0010

045690.0020
045700 M2-sensor pin set NÜSSLER
Order ID Designation
045700.0010 M2 stylus set, 20 pcs
045700.0020 Empty case, 38 pcs
045700.0030 Empty case, 93 pcs

Code 010
045710 Adapter NÜSSLER
Touch probe/probe elements/dial gauges
Note:
Suitable for: 045710.0010 045710.0020
* Renishaw TP2
** Renishaw TP6
*** Renishaw TP7
**** Dial gauges M2.5
***** LEITZ
Order ID Type L D Designation d1 L1 Weight
mm mm mm mm g
045710.0005 M2 / M3* 7 5 Adapter (TP2) M2 / M3 --- --- 1.0 045710.0030 045710.0040
045710.0007 M2.5 / M2 **** 8 5 Adapter (Dial gauge) M2.5 / M2 --- --- 1.2
045710.0010 M3 / M2** 6.0 4.0 Adapter (TP6) M3 / M2 --- --- 0.8
045710.0020 M4 / M2*** 8.0 5.0 Adapter (TP7) M4 / M2 --- --- 1.1
045710.0030 M4 / M3 9.0 7.0 Adapter M4 / M3 4.0 6.0 1.2
045710.0040 M5 / M2***** 9.0 11.0 Adapter (LEITZ) M5 / M2 5.0 5.0 3.1 045710.0005 045710.0007

045710.0010 045710.0020 045710.0030 045710.0040
