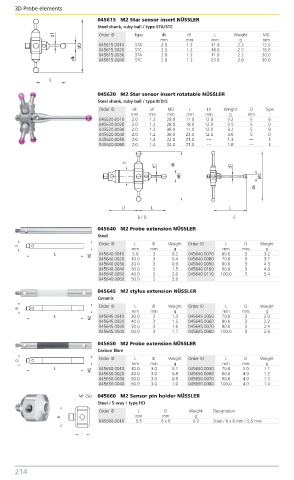

Page 220 - Benma | Blue book 5.0

3D Probe elements Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
045615 M2 Star sensor insert NÜSSLER
Steel shank, ruby ball / type STA/STC
Order ID Type dk d1 L Weight MD
mm mm mm g mm
045615.0010 STA 2.0 1.2 11.0 2.2 12.0
045615.0020 STC 2.0 1.2 18.0 2.5 16.0
045615.0030 STA 2.0 1.2 11.0 2.2 20.0
045615.0040 STC 2.0 1.2 23.0 2.6 30.0

045620 M2 Star sensor insert rotatable NÜSSLER
Steel shank, ruby ball / type B/D/E
Order ID dk d1 MD L L1 Weight D Type
mm mm mm mm mm g mm
045620.0010 2.0 1.2 28.0 11.0 12.0 3.2 5 B
045620.0020 2.0 1.2 28.0 18.0 12.0 3.5 5 D
045620.0030 2.0 1.2 38.0 11.0 12.0 3.2 5 B
045620.0040 2.0 1.2 38.0 23.0 12.0 3.6 5 D
045620.0050 2.0 1.4 22.0 21.0 --- 1.3 --- E
045620.0060 2.0 1.4 32.0 21.0 --- 1.8 --- E

B / D E
045640 M2 Probe extension NÜSSLER
Steel
Order ID L D Weight Order ID L D Weight
mm mm g mm mm g
045640.0010 5.0 3 0.2 045640.0070 60.0 3 3.2
045640.0020 10.0 3 0.4 045640.0080 70.0 3 3.7
045640.0030 20.0 3 0.9 045640.0090 80.0 3 4.3
045640.0040 30.0 3 1.5 045640.0100 90.0 3 4.8
045640.0050 40.0 3 2.0 045640.0110 100.0 3 5.4
045640.0060 50.0 3 2.6
045645 M2 stylus extension NÜSSLER
Ceramic
Order ID L D Weight Order ID L D Weight
mm mm g mm mm g
045645.0010 30.0 3 1.3 045645.0050 70.0 3 2.0
045645.0020 40.0 3 1.5 045645.0060 80.0 3 2.2
045645.0030 50.0 3 1.6 045645.0070 90.0 3 2.4
045645.0040 60.0 3 1.7 045645.0080 100.0 3 2.6
045650 M2 Probe extension NÜSSLER
Carbon fibre
Order ID L D Weight Order ID L D Weight
mm mm g mm mm g
045650.0010 30.0 3.0 0.7 045650.0050 70.0 3.0 1.1
045650.0020 40.0 3.0 0.8 045650.0060 80.0 4.0 1.2
045650.0030 50.0 3.0 0.9 045650.0070 90.0 4.0 1.3
045650.0040 60.0 3.0 1.0 045650.0080 100.0 4.0 1.4
045660 M2 Sensor pin holder NÜSSLER
Steel / 5-way / type HD
Order ID L D Weight Designation
mm mm g
045660.0010 5.5 6 x 6 0.9 Steel / 6 x 6 mm / 5.5 mm
