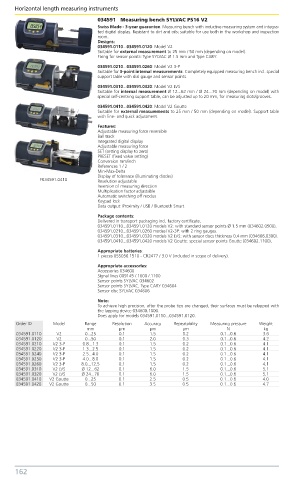

Horizontal length measuring instruments  Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
                                034591   Measuring bench SYLVAC PS16 V2
                                Swiss Made - 3-year guarantee. Measuring bench with inductive measuring system and integra-
                                ted digital display. Resistant to dirt and oils; suitable for use both in the workshop and inspection
                                room.
                                Designs:
                                034591.0110...034591.0120: Model V2
                                Suitable for external measurement to 25 mm / 50 mm (depending on model).
                                Fixing for sensor points: Type SYLVAC Ø 1.5 mm and Type CARY.
                                034591.0210...034591.0260: Model V2 3-P
                                Suitable for 3-point internal measurements. Completely equipped measuring bench incl. special
                                support table with dial gauge and sensor points.
                                034591.0310...034591.0320: Model V2 LVS
                                Suitable for internal measurement Ø 12...62 mm / Ø 24...70 mm (depending on model) with
                                special self-centring support table, can be adjusted up to 20 mm, for measuring slots/grooves.
                                034591.0410...034591.0420: Model V2 Goutte
                                Suitable for external measurements to 25 mm / 50 mm (depending on model). Support table
                                with fine- and quick adjustment.
                                Features:
                                Adjustable measuring force reversible
                                Ball track
                                Integrated digital display
                                Adjustable measuring force
                                SET (setting display to zero)
                                PRESET (fixed value setting)
                                Conversion mm/inch
                                References 1 / 2
                                Min-Max-Delta
                                Display of tolerance (illuminating diodes)
              F034591.0410      Resolution adjustable
                                Inversion of measuring direction
                                Multiplication factor adjustable
                                Automatic switching off modus
                                Keypad lock
                                Data output: Proximity / USB / Bluetooth Smart
                                Package contents:
                                Delivered in transport packaging incl. factory certificate.
                                034591.0110...034591.0120 models V2: with standard sensor points Ø 1.5 mm (034602.0500).
                                034591.0210...034591.0260 modesl V2-3P: with 2 ring gauges.
                                034591.0310...034591.0320 models V2 LVS: with sensor discs thickness 0.4 mm (034606.0300).
                                034591.0410...034591.0420 models V2 Goutte: special sensor points Goutte (034602.1100).
                                Appropriate batteries:
                                1 pieces 055050.1510 - CR2477 / 3.0 V (included in scope of delivery).
                                Appropriate accessories:
                                Accessories 034600
                                Signal lines 009145 /.1000 /.1100
                                Sensor points SYLVAC 034602
                                Sensor points SYLVAC, Type CARY 034604
                                Sensor disc SYLVAC 034606
                                Note:
                                To achieve high precision, after the probe tips are changed, their surfaces must be relapped with
                                the lapping device 034600.1000.
                                Does apply for models 034591.0110...034591.0120.
      Order ID    Model     Range    Resolution  Accuracy  Repeatability  Measuring pressure  Weight
                             mm        µm        µm         µm            N           kg
      034591.0110  V2       0...25     0.1       1.5        0.2         0.1...0.6     3.6
      034591.0120  V2       0...50     0.1       2.0        0.3         0.1...0.6     4.2
      034591.0210  V2 3-P   0.8...1.3  0.1       1.5        0.2         0.1...0.6     4.1
      034591.0220  V2 3-P   1.3...2.5  0.1       1.5        0.2         0.1...0.6     4.1
      034591.0240  V2 3-P   2.5...4.0  0.1       1.5        0.2         0.1...0.6     4.1
      034591.0250  V2 3-P   4.0...8.0  0.1       1.5        0.2         0.1...0.6     4.1
      034591.0260  V2 3-P  8.0...12.5  0.1       1.5        0.2         0.1...0.6     4.1
      034591.0310  V2 LVS  Ø 12...62   0.1       6.0        1.5         0.1...0.6     5.1
      034591.0320  V2 LVS  Ø 24...70   0.1       6.0        1.5         0.1...0.6     5.1
      034591.0410  V2 Goutte  0...25   0.1       2.5        0.5         0.1...0.6     4.0
      034591.0420  V2 Goutte  0...50   0.1       3.5        0.5         0.1...0.6     4.7
