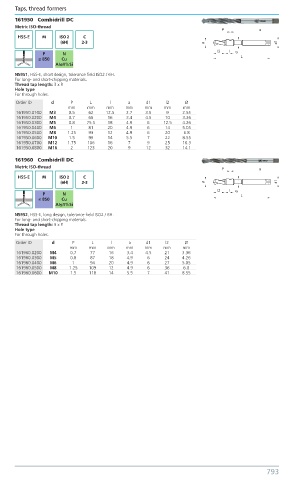

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
161950 Combidrill DC
Metric ISO-thread
HSS-E M ISO 2 C
(6H) 2-3
P N
≤ 850 Cu
AI≤4%Si
N5951, HSS-E, short design, tolerance field ISO2 / 6H.
For long- and short-chipping materials.
Thread tap length: 3 x P.
Hole type
For through holes.
Order ID d P L l a d1 l2 Ø
mm mm mm mm mm mm mm
161950.0100 M3 0.5 62 12.5 2.7 3.5 9 2.55
161950.0200 M4 0.7 66 16 3.4 4.5 10 3.36
161950.0300 M5 0.8 75.5 18 4.9 6 12.5 4.26
161950.0400 M6 1 81 20 4.9 6 14 5.05
161950.0500 M8 1.25 93 12 4.9 6 20 6.8
161950.0600 M10 1.5 99 14 5.5 7 22 8.55
161950.0700 M12 1.75 106 16 7 9 25 10.3
161950.0800 M16 2 123 20 9 12 32 14.1

161960 Combidrill DC
Metric ISO-thread
HSS-E M ISO 2 C
(6H) 2-3
P N
≤ 850 Cu
AI≤4%Si
N5952, HSS-E, long design, tolerance field ISO2 / 6H.
For long- and short-chipping materials.
Thread tap length: 3 x P.
Hole type
For through holes.
Order ID d P L l a d1 l2 Ø
mm mm mm mm mm mm mm
161960.0200 M4 0.7 77 16 3.4 4.5 21 3.36
161960.0300 M5 0.8 87 18 4.9 6 24 4.26
161960.0400 M6 1 94 20 4.9 6 27 5.05
161960.0500 M8 1.25 109 12 4.9 6 36 6.8
161960.0600 M10 1.5 118 14 5.5 7 41 8.55

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 793
