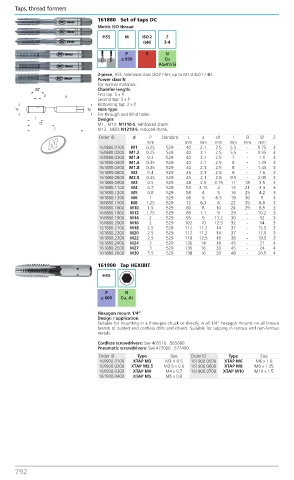

161880 Set of taps DC
Metric ISO thread
HSS M ISO 2 Z
(6H) 3-4
P K N
≤ 850 Cu
AI≥4%Si
3-piece, HSS, tolerance class ISO2 / 6H, up to M1.4 ISO1 / 4H.
Power class N
For normal materials.
Chamfer length:
First tap: 5 x P.
Second tap: 3 x P.
Bottoming tap: 2 x P.
Hole type
For through and blind holes.
Designs
M1...M10: N1110-S, reinforced shank.
M12...M30: N1210-S, reduced shank.
L
a
d
P
d1
Ø
l3
l
N Order ID M1 0.25 Standard mm mm mm mm mm 0.75 Z 3
mm
mm
5.5
40
529
-
2.5
161880.0100
2.1
161880.0200 M1.2 0.25 529 40 2.1 2.5 5.5 - 0.95 3
161880.0300 M1.4 0.3 529 40 2.1 2.5 7 - 1.1 3
161880.0400 M1.6 0.35 529 40 2.1 2.5 8 - 1.25 3
161880.0500 M1.8 0.35 529 40 2.1 2.5 8 - 1.45 3
161880.0600 M2 0.4 529 45 2.1 2.8 8 - 1.6 3
161880.0800 M2.5 0.45 529 45 2.1 2.8 9.5 - 2.05 3
161880.0900 M3 0.5 529 48 2.5 3.15 11 18 2.5 3
161880.1100 M4 0.7 529 53 3.15 4 13 21 3.3 3
161880.1200 M5 0.8 529 58 4 5 16 25 4.2 3
161880.1300 M6 1 529 66 5 6.3 19 30 5 3
161880.1500 M8 1.25 529 72 6.3 8 22 35 6.8 3
161880.1600 M10 1.5 529 80 8 10 24 39 8.5 3
161880.1800 M12 1.75 529 89 7.1 9 29 - 10.2 3
161880.1900 M14 2 529 95 9 11.2 30 - 12 3
161880.2000 M16 2 529 102 10 12.5 32 - 14 3
161880.2100 M18 2.5 529 112 11.2 14 37 - 15.5 3
161880.2200 M20 2.5 529 112 11.2 14 37 - 17.5 3
161880.2300 M22 2.5 529 118 12.5 16 38 - 19.5 3
161880.2400 M24 3 529 130 14 18 45 - 21 4
161880.2500 M27 3 529 135 16 20 45 - 24 4
161880.2600 M30 3.5 529 138 16 20 48 - 26.5 4
161900 Tap HEXIBIT
HSS
P N
≤ 600 Cu, AI
Hexagon mount 1/4“.
Design / application
Suitable for mounting in a three-jaw chuck or directly in all 1/4“ hexagon mounts on all known
brands of corded and cordless drills and drivers. Suitable for tapping in ferrous and non-ferrous
metals.
Cordless screwdrivers: See 465510...565680.
Pneumatic screwdrivers: See 477000...577490.
Order ID Type Size Order ID Type Size
161900.0100 XTAP M3 M3 X 0.5 161900.0500 XTAP M6 M6 x 1.0
161900.0200 XTAP M3.5 M3.5 x 0.6 161900.0600 XTAP M8 M8 x 1.25
161900.0300 XTAP M4 M4 x 0.7 161900.0700 XTAP M10 M10 x 1.5
161900.0400 XTAP M5 M5 x 0.8
