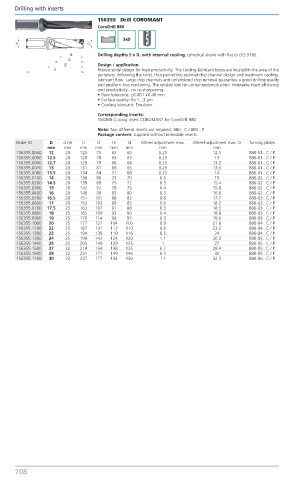

1 56355 Drill COROMANT
CoroDrill 880
5xD

Drilling depths 5 x D, with internal cooling, cylindrcal shank with flat to ISO 9766.
Design / application
Robust spiral design for high productivity. The cooling-lubricant bores are located in the area of the
periphery, following the twist, thus permitting optimal chip channel design and maximum cooling-
lubricant flow. Large chip channels and unhindered chip removal guarantee a good drilling quality
and problem-free machining. The reliable tool for unmanned production. Indexable insert efficiency
and productivity - no re-sharpening.
• Bore tolerance: ±0.00 / +0.40 mm.
• Surface quality: Ra 1...3 µm.
• Cooling lubricant: Emulsion.
Corresponding inserts:
156360 Cutting insert COROMANT for CoroDrill 880
Note: Two different inserts are required, 880...C / 880...P.
Package content: supplied without indexable inserts.
Order ID D d h6 l1 l2 l3 l4 Wheel adjustment max. Wheel adjustment max. D Turning plates
mm mm mm mm mm mm mm mm
156355.0040 12 20 125 75 63 60 0.25 12.5 880-01...C / P
156355.0050 12.5 20 128 78 65 63 0.25 13 880-01...C / P
156355.0060 12.7 20 129 79 66 64 0.25 13.2 880-01...C / P
156355.0070 13 20 131 81 68 65 0.25 13.5 880-01...C / P
156355.0080 13.5 20 134 84 71 68 0.25 14 880-01...C / P
156355.0100 14 20 136 86 73 70 0.5 15 880-02...C / P
156355.0200 14.5 20 139 89 75 72 0.5 15.4 880-02...C / P
156355.0300 15 20 142 92 78 75 0.4 15.8 880-02...C / P
156355.0400 16 20 148 98 83 80 0.3 16.6 880-02...C / P
156355.0500 16.5 20 151 101 86 83 0.6 17.7 880-03...C / P
156355.0600 17 20 153 103 88 85 0.6 18.2 880-03...C / P
156355.0700 17.5 25 163 107 91 88 0.5 18.5 880-03...C / P
156355.0800 18 25 165 109 93 90 0.4 18.8 880-03...C / P
156355.0900 19 25 170 114 98 95 0.3 19.6 880-03...C / P
156355.1000 20 25 177 121 104 100 0.9 21.8 880-04...C / P
156355.1100 22 25 187 131 113 110 0.6 23.2 880-04...C / P
156355.1200 23 25 194 138 119 116 0.5 24 880-04...C / P
156355.1300 24 25 199 143 124 120 1.1 26.2 880-05...C / P
156355.1400 25 25 205 149 129 125 1 27 880-05...C / P
156355.1500 27 32 219 159 138 135 0.7 28.4 880-05...C / P
156355.1600 29 32 231 171 149 146 0.5 30 880-05...C / P
156355.1700 30 32 237 177 154 150 1.1 32.2 880-06...C / P
