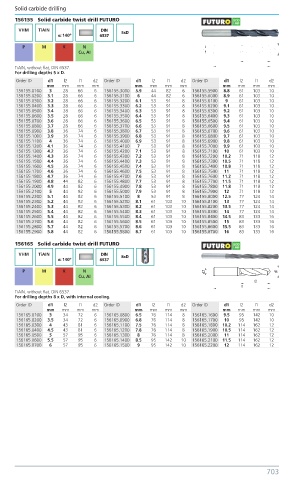

Page 712 - Benma | Blue book 5.0

Solid carbide drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
156155 Solid carbide twist drill FUTURO

VHM TiAIN DIN 5xD
α: 140º 6537
P M K N
Cu, AI

TiAIN, without flat, DIN 6537.
For drilling depths 5 x D.
Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2
mm mm mm mm mm mm mm mm mm mm mm mm
156155.0100 3 28 66 6 156155.3000 5.9 44 82 6 156155.5900 8.8 61 103 10
156155.0200 3.1 28 66 6 156155.3100 6 44 82 6 156155.6000 8.9 61 103 10
156155.0300 3.2 28 66 6 156155.3200 6.1 53 91 8 156155.6100 9 61 103 10
156155.0400 3.3 28 66 6 156155.3300 6.2 53 91 8 156155.6200 9.1 61 103 10
156155.0500 3.4 28 66 6 156155.3400 6.3 53 91 8 156155.6300 9.2 61 103 10
156155.0600 3.5 28 66 6 156155.3500 6.4 53 91 8 156155.6400 9.3 61 103 10
156155.0700 3.6 28 66 6 156155.3600 6.5 53 91 8 156155.6500 9.4 61 103 10
156155.0800 3.7 28 66 6 156155.3700 6.6 53 91 8 156155.6600 9.5 61 103 10
156155.0900 3.8 36 74 6 156155.3800 6.7 53 91 8 156155.6700 9.6 61 103 10
156155.1000 3.9 36 74 6 156155.3900 6.8 53 91 8 156155.6800 9.7 61 103 10
156155.1100 4 36 74 6 156155.4000 6.9 53 91 8 156155.6900 9.8 61 103 10
156155.1200 4.1 36 74 6 156155.4100 7 53 91 8 156155.7000 9.9 61 103 10
156155.1300 4.2 36 74 6 156155.4200 7.1 53 91 8 156155.7100 10 61 103 10
156155.1400 4.3 36 74 6 156155.4300 7.2 53 91 8 156155.7200 10.2 71 118 12
156155.1500 4.4 36 74 6 156155.4400 7.3 53 91 8 156155.7300 10.5 71 118 12
156155.1600 4.5 36 74 6 156155.4500 7.4 53 91 8 156155.7400 10.8 71 118 12
156155.1700 4.6 36 74 6 156155.4600 7.5 53 91 8 156155.7500 11 71 118 12
156155.1800 4.7 36 74 6 156155.4700 7.6 53 91 8 156155.7600 11.2 71 118 12
156155.1900 4.8 44 82 6 156155.4800 7.7 53 91 8 156155.7700 11.5 71 118 12
156155.2000 4.9 44 82 6 156155.4900 7.8 53 91 8 156155.7800 11.8 71 118 12
156155.2100 5 44 82 6 156155.5000 7.9 53 91 8 156155.7900 12 71 118 12
156155.2200 5.1 44 82 6 156155.5100 8 53 91 8 156155.8000 12.5 77 124 14
156155.2300 5.2 44 82 6 156155.5200 8.1 61 103 10 156155.8100 13 77 124 14
156155.2400 5.3 44 82 6 156155.5300 8.2 61 103 10 156155.8200 13.5 77 124 14
156155.2500 5.4 44 82 6 156155.5400 8.3 61 103 10 156155.8300 14 77 124 14
156155.2600 5.5 44 82 6 156155.5500 8.4 61 103 10 156155.8400 14.5 83 133 16
156155.2700 5.6 44 82 6 156155.5600 8.5 61 103 10 156155.8500 15 83 133 16
156155.2800 5.7 44 82 6 156155.5700 8.6 61 103 10 156155.8600 15.5 83 133 16
156155.2900 5.8 44 82 6 156155.5800 8.7 61 103 10 156155.8700 16 83 133 16
156165 Solid carbide twist drill FUTURO
VHM TiAIN DIN 8xD
α: 140º 6537
P M K N
Cu, AI

TiAIN, without flat, DIN 6537.
For drilling depths 8 x D, with internal cooling.
Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2
mm mm mm mm mm mm mm mm mm mm mm mm
156165.0100 3 34 72 6 156165.0800 6.5 76 114 8 156165.1600 9.5 95 142 10
156165.0200 3.5 34 72 6 156165.0900 6.8 76 114 8 156165.1700 10 95 142 10
156165.0300 4 43 81 6 156165.1100 7.5 76 114 8 156165.1800 10.2 114 162 12
156165.0400 4.5 43 81 6 156165.1200 7.8 76 114 8 156165.1900 10.5 114 162 12
156165.0500 5 57 95 6 156165.1300 8 76 114 8 156165.2000 11 114 162 12
156165.0600 5.5 57 95 6 156165.1400 8.5 95 142 10 156165.2100 11.5 114 162 12
156165.0700 6 57 95 6 156165.1500 9 95 142 10 156165.2200 12 114 162 12

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 703
