Drilling with inserts Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

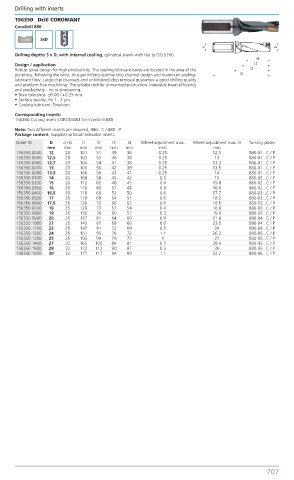

1 56350 Drill COROMANT
CoroDrill 880
3xD

Drilling depths 3 x D, with internal cooling, cylindrcal shank with flat to ISO 9766.
Design / application
Robust spiral design for high productivity. The cooling-lubricant bores are located in the area of the
periphery, following the twist, thus permitting optimal chip channel design and maximum cooling-
lubricant flow. Large chip channels and unhindered chip removal guarantee a good drilling quality
and problem-free machining. The reliable tool for unmanned production. Indexable insert efficiency
and productivity - no re-sharpening.
• Bore tolerance: ±0.00 / +0.25 mm.
• Surface quality: Ra 1...3 µm.
• Cooling lubricant: Emulsion.
Corresponding inserts:
156360 Cutting insert COROMANT for CoroDrill 880
Note: Two different inserts are required, 880...C / 880...P.
Package content: Supplied without indexable inserts.
Order ID D d h6 l1 l2 l3 l4 Wheel adjustment max. Wheel adjustment max. D Turning plates
mm mm mm mm mm mm mm mm
156350.0040 12 20 101 51 39 36 0.25 12.5 880-01...C / P
156350.0050 12.5 20 103 53 40 38 0.25 13 880-01...C / P
156350.0060 12.7 20 104 54 41 38 0.25 13.2 880-01...C / P
156350.0070 13 20 105 55 42 39 0.25 13.5 880-01...C / P
156350.0080 13.5 20 106 56 43 41 0.25 14 880-01...C / P
156350.0100 14 20 108 58 45 42 0.5 15 880-02...C / P
156350.0200 15 20 112 62 48 45 0.4 15.8 880-02...C / P
156350.0300 16 20 116 66 51 48 0.3 16.6 880-02...C / P
156350.0400 16.5 20 118 68 53 50 0.6 17.7 880-03...C / P
156350.0500 17 20 119 69 54 51 0.6 18.2 880-03...C / P
156350.0600 17.5 25 128 72 56 53 0.5 18.5 880-03...C / P
156350.0700 18 25 129 73 57 54 0.4 18.8 880-03...C / P
156350.0800 19 25 132 76 60 57 0.3 19.6 880-03...C / P
156350.0900 20 25 137 81 64 60 0.9 21.8 880-04...C / P
156350.1000 22 25 143 87 69 66 0.6 23.2 880-04...C / P
156350.1100 23 25 147 91 72 69 0.5 24 880-04...C / P
156350.1200 24 25 151 95 76 72 1.1 26.2 880-05...C / P
156350.1300 25 25 155 99 79 75 1 27 880-05...C / P
156350.1400 27 32 165 105 84 81 0.7 28.4 880-05...C / P
156350.1500 29 32 172 112 90 87 0.5 30 880-05...C / P
156350.1600 30 32 177 117 94 90 1.1 32.2 880-06...C / P
