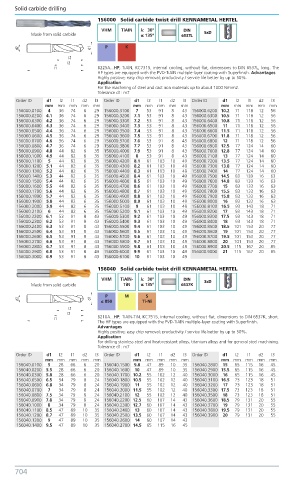

Solid carbide drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
156000 Solid carbide twist drill KENNAMETAL HERTEL

VHM TiAIN λ: 30º DIN
Made from solid carbide α: 135º 6537L 5xD
P K

B225A...HP, TiAlN, KC7315, internal cooling, without flat, dimensions to DIN 6537L, long. The
HP types are equipped with the PVD-TiAlN multiple-layer coating with Superfinish. Advantages
Highly positive; easy chip removal; productivity / service life better by up to 50%.
Application
For the machining of steel and cast iron materials up to about 1000 N/mm2.
Tolerance d1: m7
Order ID d1 l2 l1 d2 l3 Order ID d1 l2 l1 d2 l3 Order ID d1 l2 l1 d2 l3
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
156000.0100 4 36 74 6 29 156000.3100 7 53 91 8 43 156000.6200 10.2 71 118 12 56
156000.0200 4.1 36 74 6 29 156000.3200 7.1 53 91 8 43 156000.6300 10.5 71 118 12 56
156000.0300 4.2 36 74 6 29 156000.3300 7.2 53 91 8 43 156000.6400 10.8 71 118 12 56
156000.0400 4.3 36 74 6 29 156000.3400 7.3 53 91 8 43 156000.6500 11 71 118 12 56
156000.0500 4.4 36 74 6 29 156000.3500 7.4 53 91 8 43 156000.6600 11.5 71 118 12 56
156000.0600 4.5 36 74 6 29 156000.3600 7.5 53 91 8 43 156000.6700 11.8 71 118 12 56
156000.0700 4.6 36 74 6 29 156000.3700 7.6 53 91 8 43 156000.6800 12 71 118 12 56
156000.0800 4.7 36 74 6 29 156000.3800 7.7 53 91 8 43 156000.6900 12.5 77 124 14 60
156000.0900 4.8 44 82 6 35 156000.4000 7.9 53 91 8 43 156000.7000 12.8 77 124 14 60
156000.1000 4.9 44 82 6 35 156000.4100 8 53 91 8 43 156000.7100 13 77 124 14 60
156000.1100 5 44 82 6 35 156000.4200 8.1 61 103 10 49 156000.7200 13.5 77 124 14 60
156000.1200 5.1 44 82 6 35 156000.4300 8.2 61 103 10 49 156000.7300 13.8 77 124 14 60
156000.1300 5.2 44 82 6 35 156000.4400 8.3 61 103 10 49 156000.7400 14 77 124 14 60
156000.1400 5.3 44 82 6 35 156000.4500 8.4 61 103 10 49 156000.7500 14.5 83 133 16 63
156000.1500 5.4 44 82 6 35 156000.4600 8.5 61 103 10 49 156000.7600 14.8 83 133 16 63
156000.1600 5.5 44 82 6 35 156000.4700 8.6 61 103 10 49 156000.7700 15 83 133 16 63
156000.1700 5.6 44 82 6 35 156000.4800 8.7 61 103 10 49 156000.7800 15.5 83 133 16 63
156000.1800 5.7 44 82 6 35 156000.4900 8.8 61 103 10 49 156000.7900 15.8 83 133 16 63
156000.1900 5.8 44 82 6 35 156000.5000 8.9 61 103 10 49 156000.8000 16 83 133 16 63
156000.2000 5.9 44 82 6 35 156000.5100 9 61 103 10 49 156000.8100 16.5 93 143 18 71
156000.2100 6 44 82 6 35 156000.5200 9.1 61 103 10 49 156000.8200 17 93 143 18 71
156000.2200 6.1 53 91 8 43 156000.5300 9.2 61 103 10 49 156000.8300 17.5 93 143 18 71
156000.2300 6.2 53 91 8 43 156000.5400 9.3 61 103 10 49 156000.8400 18 93 143 18 71
156000.2400 6.3 53 91 8 43 156000.5500 9.4 61 103 10 49 156000.8500 18.5 101 153 20 77
156000.2500 6.4 53 91 8 43 156000.5600 9.5 61 103 10 49 156000.8600 19 101 153 20 77
156000.2600 6.5 53 91 8 43 156000.5700 9.6 61 103 10 49 156000.8700 19.5 101 153 20 77
156000.2700 6.6 53 91 8 43 156000.5800 9.7 61 103 10 49 156000.8800 20 101 153 20 77
156000.2800 6.7 53 91 8 43 156000.5900 9.8 61 103 10 49 156000.8900 20.5 115 167 20 85
156000.2900 6.8 53 91 8 43 156000.6000 9.9 61 103 10 49 156000.9000 21 115 167 20 85
156000.3000 6.9 53 91 8 43 156000.6100 10 61 103 10 49
156040 Solid carbide twist drill KENNAMETAL HERTEL

VHM TiAlN- λ: 30º DIN 3xD
Made from solid carbide TiN α: 135º 6537K
P M S
≤ 850 Ti-Ni

B210A...HP, TiAlN-TiN, KC7515, internal cooling, without flat, dimensions to DIN 6537K, short.
The HP types are equipped with the PVD-TiAlN multiple-layer coating with Superfinish.
Advantages
Highly positive; easy chip removal; productivity / service life better by up to 50%.
Application
For drilling stainless steel and heat-resistant alloys, titanium alloys and for general steel machining.
Tolerance d1: m7
Order ID d1 l2 l1 d2 l3 Order ID d1 l2 l1 d2 l3 Order ID d1 l2 l1 d2 l3
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
156040.0100 5 28 66 6 20 156040.1500 9.8 47 89 10 35 156040.2800 15 65 115 16 45
156040.0200 5.5 28 66 6 20 156040.1600 10 47 89 10 35 156040.2900 15.5 65 115 16 45
156040.0300 5.8 28 66 6 20 156040.1700 10.2 55 102 12 40 156040.3000 16 65 115 16 45
156040.0500 6.5 34 79 8 24 156040.1800 10.5 55 102 12 40 156040.3100 16.5 73 123 18 51
156040.0600 6.8 34 79 8 24 156040.1900 11 55 102 12 40 156040.3200 17 73 123 18 51
156040.0700 7 34 79 8 24 156040.2000 11.5 55 102 12 40 156040.3300 17.5 73 123 18 51
156040.0800 7.5 34 79 8 24 156040.2100 12 55 102 12 40 156040.3500 18 73 123 18 51
156040.0900 7.8 34 79 8 24 156040.2200 12.5 60 107 14 43 156040.3600 18.5 79 131 20 55
156040.1000 8 34 79 8 24 156040.2300 12.7 60 107 14 43 156040.3700 19 79 131 20 55
156040.1100 8.5 47 89 10 35 156040.2400 13 60 107 14 43 156040.3800 19.5 79 131 20 55
156040.1200 8.7 47 89 10 35 156040.2500 13.5 60 107 14 43 156040.3900 20 79 131 20 55
156040.1300 9 47 89 10 35 156040.2600 14 60 107 14 43
156040.1400 9.5 47 89 10 35 156040.2700 14.5 65 115 16 45
