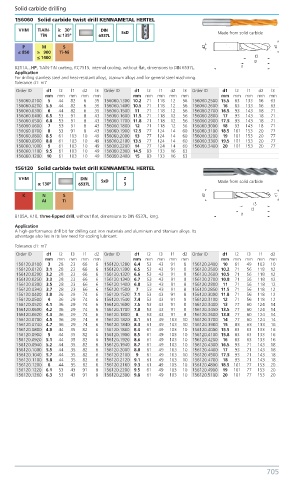

Solid carbide drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
156060 Solid carbide twist drill KENNAMETAL HERTEL

VHM TiAlN- λ: 30º DIN 5xD Made from solid carbide
TiN α: 135º 6537L
P M S
≤ 850 ≥ 900 Ti-Ni
≤ 1400
B211A...HP, TiAlN-TiN coating, KC7515, internal cooling, without flat, dimensions to DIN 6537L.
Application
For drilling stainless steel and heat-resistant alloys, titanium alloys and for general steel machining.
Tolerance d1: m7
Order ID d1 l2 l1 d2 l3 Order ID d1 l2 l1 d2 l3 Order ID d1 l2 l1 d2 l3
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
156060.0100 5 44 82 6 35 156060.1300 10.2 71 118 12 56 156060.2500 15.5 83 133 16 63
156060.0200 5.5 44 82 6 35 156060.1400 10.5 71 118 12 56 156060.2600 16 83 133 16 63
156060.0300 6 44 82 6 35 156060.1500 11 71 118 12 56 156060.2700 16.5 93 143 18 71
156060.0400 6.5 53 91 8 43 156060.1600 11.5 71 118 12 56 156060.2800 17 93 143 18 71
156060.0500 6.8 53 91 8 43 156060.1700 11.8 71 118 12 56 156060.2900 17.5 93 143 18 71
156060.0600 7 53 91 8 43 156060.1800 12 71 118 12 56 156060.3000 18 93 143 18 71
156060.0700 8 53 91 8 43 156060.1900 12.5 77 124 14 60 156060.3100 18.5 101 153 20 77
156060.0800 8.5 61 103 10 49 156060.2000 13 77 124 14 60 156060.3200 19 101 153 20 77
156060.0900 8.8 61 103 10 49 156060.2100 13.5 77 124 14 60 156060.3300 19.5 101 153 20 77
156060.1000 9 61 103 10 49 156060.2200 14 77 124 14 60 156060.3400 20 101 153 20 77
156060.1100 9.5 61 103 10 49 156060.2300 14.5 83 133 16 63
156060.1200 10 61 103 10 49 156060.2400 15 83 133 16 63
156120 Solid carbide twist drill KENNAMETAL HERTEL
VHM DIN 5xD Z
α: 130º 6537L 3 Made from solid carbide

K N S
AI Ti

B105A, K10, three-lipped drill, without flat, dimensions to DIN 6537L, long.
Application
A high-performance drill bit for drilling cast iron materials and aluminium and titanium alloys. Its
advantage also lies in its low need for cooling lubricant.
Tolerance d1: m7
Order ID d1 l2 l3 l1 d2 Order ID d1 l2 l3 l1 d2 Order ID d1 l2 l3 l1 d2
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
156120.0100 3 28 23 66 6 156120.1280 6.4 53 43 91 8 156120.2400 10 61 49 103 10
156120.0120 3.1 28 23 66 6 156120.1300 6.5 53 43 91 8 156120.2500 10.2 71 56 118 12
156120.0200 3.2 28 23 66 6 156120.1320 6.6 53 43 91 8 156120.2600 10.5 71 56 118 12
156120.0250 3.3 28 23 66 6 156120.1340 6.7 53 43 91 8 156120.2700 10.8 71 56 118 12
156120.0300 3.5 28 23 66 6 156120.1400 6.8 53 43 91 8 156120.2800 11 71 56 118 12
156120.0340 3.7 28 23 66 6 156120.1500 7 53 43 91 8 156120.2850 11.5 71 56 118 12
156120.0400 3.8 36 29 74 6 156120.1520 7.1 53 43 91 8 156120.3000 11.8 71 56 118 12
156120.0500 4 36 29 74 6 156120.1540 7.4 53 43 91 8 156120.3100 12 71 56 118 12
156120.0520 4.1 36 29 74 6 156120.1600 7.5 53 43 91 8 156120.3400 13 77 60 124 14
156120.0600 4.2 36 29 74 6 156120.1700 7.8 53 43 91 8 156120.3450 13.5 77 60 124 14
156120.0620 4.3 36 29 74 6 156120.1800 8 53 43 91 8 156120.3600 13.8 77 60 124 14
156120.0700 4.5 36 29 74 6 156120.1820 8.1 61 49 103 10 156120.3700 14 77 60 124 14
156120.0740 4.7 36 29 74 6 156120.1840 8.3 61 49 103 10 156120.3900 15 83 63 133 16
156120.0800 4.8 44 35 82 6 156120.1860 8.4 61 49 103 10 156120.4000 15.5 83 63 133 16
156120.0900 5 44 35 82 6 156120.1900 8.5 61 49 103 10 156120.4100 15.8 83 63 133 16
156120.0920 5.1 44 35 82 6 156120.1920 8.6 61 49 103 10 156120.4200 16 83 63 133 16
156120.0940 5.2 44 35 82 6 156120.1940 8.7 61 49 103 10 156120.4300 16.5 93 71 143 18
156120.1000 5.5 44 35 82 6 156120.2000 8.8 61 49 103 10 156120.4400 17 93 71 143 18
156120.1040 5.7 44 35 82 6 156120.2100 9 61 49 103 10 156120.4500 17.5 93 71 143 18
156120.1100 5.8 44 35 82 6 156120.2120 9.1 61 49 103 10 156120.4700 18 93 71 143 18
156120.1200 6 44 35 82 6 156120.2160 9.3 61 49 103 10 156120.4800 18.5 101 77 153 20
156120.1220 6.1 53 43 91 8 156120.2200 9.5 61 49 103 10 156120.4900 19 101 77 153 20
156120.1260 6.3 53 43 91 8 156120.2300 9.8 61 49 103 10 156120.5100 20 101 77 153 20
