Drilling with inserts Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

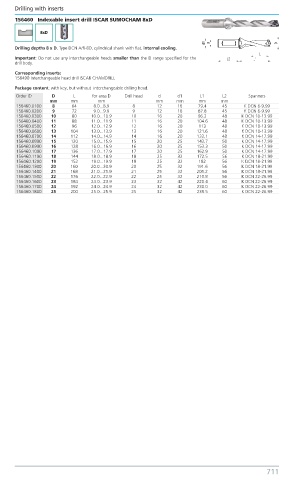

1 56460 Indexable insert drill ISCAR SUMOCHAM 8xD

8xD

Drilling depths 8 x D, Type DCN A/R-8D, cylindrical shank with flat, internal cooling,
Important: Do not use any interchangeable heads smaller than the D range specified for the
drill body.
Corresponding inserts:
156490 Interchangeable head drill ISCAR CHAMDRILL
Package content: with key, but without interchangeable drilling head.
Order ID D L for area D Drill head d d1 L1 L2 Spanners
mm mm mm mm mm mm mm
156460.0100 8 64 8.0...8.9 8 12 16 79.4 45 K DCN 6-9.99
156460.0200 9 72 9.0...9.9 9 12 16 87.8 45 K DCN 6-9.99
156460.0300 10 80 10.0...10.9 10 16 20 96.2 48 K DCN 10-13.99
156460.0400 11 88 11.0...11.9 11 16 20 104.6 48 K DCN 10-13.99
156460.0500 12 96 12.0...12.9 12 16 20 113 48 K DCN 10-13.99
156460.0600 13 104 13.0...13.9 13 16 20 121.6 48 K DCN 10-13.99
156460.0700 14 112 14.0...14.9 14 16 20 132.1 48 K DCN 14-17.99
156460.0800 15 120 15.0...15.9 15 20 25 143.7 50 K DCN 14-17.99
156460.0900 16 128 16.0...16.9 16 20 25 153.3 50 K DCN 14-17.99
156460.1000 17 136 17.0...17.9 17 20 25 162.9 50 K DCN 14-17.99
156460.1100 18 144 18.0...18.9 18 25 32 172.5 56 K DCN 18-21.99
156460.1200 19 152 19.0...19.9 19 25 32 182 56 K DCN 18-21.99
156460.1300 20 160 20.0...20.9 20 25 32 191.6 56 K DCN 18-21.99
156460.1400 21 168 21.0...21.9 21 25 32 201.2 56 K DCN 18-21.99
156460.1500 22 176 22.0...22.9 22 25 32 210.8 56 K DCN 22-26.99
156460.1600 23 184 23.0...23.9 23 32 42 220.4 60 K DCN 22-26.99
156460.1700 24 192 24.0...24.9 24 32 42 230.0 60 K DCN 22-26.99
156460.1800 25 200 25.0...25.9 25 32 42 239.5 60 K DCN 22-26.99
