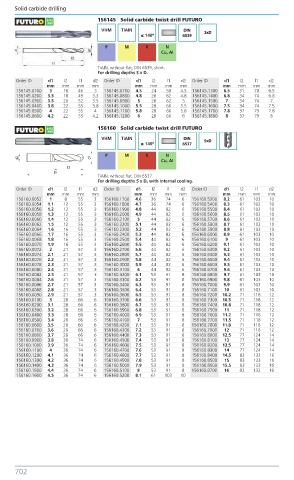

Page 711 - Benma | Blue book 5.0

Solid carbide drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
156145 Solid carbide twist drill FUTURO

VHM TiAIN DIN 3xD
α: 140º 6539
P M K N
Cu, AI

TiAIN, without flat, DIN 6539, short.
For drilling depths 3 x D.
Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2
mm mm mm mm mm mm mm mm mm mm mm mm
156145.0100 3 16 46 3 156145.0700 4.5 24 58 4.5 156145.1300 6.5 31 70 6.5
156145.0200 3.3 18 49 3.3 156145.0800 4.8 26 62 4.8 156145.1400 6.8 34 74 6.8
156145.0300 3.5 20 52 3.5 156145.0900 5 26 62 5 156145.1500 7 34 74 7
156145.0400 3.8 22 55 3.8 156145.1000 5.5 28 66 5.5 156145.1600 7.5 34 74 7.5
156145.0500 4 22 55 4 156145.1100 5.8 28 66 5.8 156145.1700 7.8 37 79 7.8
156145.0600 4.2 22 55 4.2 156145.1200 6 28 66 6 156145.1800 8 37 79 8
156160 Solid carbide twist drill FUTURO
VHM TiAIN DIN 5xD
α: 140º 6537

P M K N
Cu, AI

TiAIN, without flat, DIN 6537.
For drilling depths 5 x D, with internal cooling.
Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2
mm mm mm mm mm mm mm mm mm mm mm mm
156160.0052 1 8 55 3 156160.1700 4.6 36 74 6 156160.5300 8.2 61 103 10
156160.0054 1.1 12 55 3 156160.1800 4.7 36 74 6 156160.5400 8.3 61 103 10
156160.0056 1.2 12 55 3 156160.1900 4.8 44 82 6 156160.5500 8.4 61 103 10
156160.0058 1.3 12 55 3 156160.2000 4.9 44 82 6 156160.5600 8.5 61 103 10
156160.0060 1.4 12 55 3 156160.2100 5 44 82 6 156160.5700 8.6 61 103 10
156160.0062 1.5 12 55 3 156160.2200 5.1 44 82 6 156160.5800 8.7 61 103 10
156160.0064 1.6 16 55 3 156160.2300 5.2 44 82 6 156160.5900 8.8 61 103 10
156160.0066 1.7 16 55 3 156160.2400 5.3 44 82 6 156160.6000 8.9 61 103 10
156160.0068 1.8 16 55 3 156160.2500 5.4 44 82 6 156160.6100 9 61 103 10
156160.0070 1.9 16 55 3 156160.2600 5.5 44 82 6 156160.6200 9.1 61 103 10
156160.0072 2 21 57 3 156160.2700 5.6 44 82 6 156160.6300 9.2 61 103 10
156160.0074 2.1 21 57 3 156160.2800 5.7 44 82 6 156160.6400 9.3 61 103 10
156160.0076 2.2 21 57 3 156160.2900 5.8 44 82 6 156160.6500 9.4 61 103 10
156160.0078 2.3 21 57 3 156160.3000 5.9 44 82 6 156160.6600 9.5 61 103 10
156160.0080 2.4 21 57 3 156160.3100 6 44 82 6 156160.6700 9.6 61 103 10
156160.0082 2.5 21 57 3 156160.3200 6.1 53 91 8 156160.6800 9.7 61 103 10
156160.0084 2.6 21 57 3 156160.3300 6.2 53 91 8 156160.6900 9.8 61 103 10
156160.0086 2.7 21 57 3 156160.3400 6.3 53 91 8 156160.7000 9.9 61 103 10
156160.0088 2.8 21 57 3 156160.3500 6.4 53 91 8 156160.7100 10 61 103 10
156160.0090 2.9 21 57 3 156160.3600 6.5 53 91 8 156160.7200 10.2 71 118 12
156160.0100 3 28 66 6 156160.3700 6.6 53 91 8 156160.7300 10.5 71 118 12
156160.0200 3.1 28 66 6 156160.3800 6.7 53 91 8 156160.7400 10.8 71 118 12
156160.0300 3.2 28 66 6 156160.3900 6.8 53 91 8 156160.7500 11 71 118 12
156160.0400 3.3 28 66 6 156160.4000 6.9 53 91 8 156160.7600 11.2 71 118 12
156160.0500 3.4 28 66 6 156160.4100 7 53 91 8 156160.7700 11.5 71 118 12
156160.0600 3.5 28 66 6 156160.4200 7.1 53 91 8 156160.7800 11.8 71 118 12
156160.0700 3.6 28 66 6 156160.4300 7.2 53 91 8 156160.7900 12 71 118 12
156160.0800 3.7 28 66 6 156160.4400 7.3 53 91 8 156160.8000 12.5 77 124 14
156160.0900 3.8 36 74 6 156160.4500 7.4 53 91 8 156160.8100 13 77 124 14
156160.1000 3.9 36 74 6 156160.4600 7.5 53 91 8 156160.8200 13.5 77 124 14
156160.1100 4 36 74 6 156160.4700 7.6 53 91 8 156160.8300 14 77 124 14
156160.1200 4.1 36 74 6 156160.4800 7.7 53 91 8 156160.8400 14.5 83 133 16
156160.1300 4.2 36 74 6 156160.4900 7.8 53 91 8 156160.8500 15 83 133 16
156160.1400 4.3 36 74 6 156160.5000 7.9 53 91 8 156160.8600 15.5 83 133 16
156160.1500 4.4 36 74 6 156160.5100 8 53 91 8 156160.8700 16 83 133 16
156160.1600 4.5 36 74 6 156160.5200 8.1 61 103 10

702 Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch
