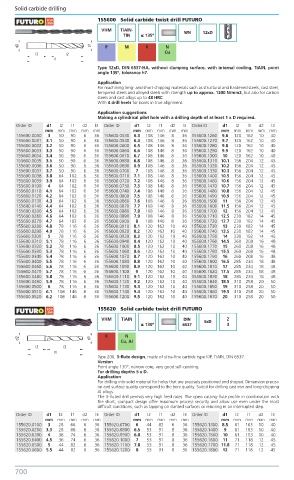

155600 Solid carbide twist drill FUTURO

VHM TiAlN- WN 12xD
TiN α: 135º
P M K N
Cu

Type 12xD, DIN 6537-HA, without clamping surface, with internal cooling, TiAlN, point
angle 135°, tolerance h7.
Application
For machining long- and short-chipping materials such as structural and hardened steels, cast steel,
tempered steels and alloyed steels with strength up to approx. 1200 N/mm2, but also for carbon
steels and cast alloys up to 48 HRC.
With 4 drill heels for bores in true alignment.
Application suggestions
Making a cylindrical pilot hole with a drilling depth of at least 1 x D required.
Order ID d1 l2 l1 d2 l3 Order ID d1 l2 l1 d2 l3 Order ID d1 l2 l1 d2 l3
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
155600.0030 3 50 90 6 36 155600.0530 6.3 108 146 8 36 155600.1260 9.6 120 162 10 40
155600.0031 3.1 50 90 6 36 155600.0540 6.4 108 146 8 36 155600.1270 9.7 120 162 10 40
155600.0032 3.2 50 90 6 36 155600.0600 6.5 108 146 8 36 155600.1280 9.8 120 162 10 40
155600.0033 3.3 50 90 6 36 155600.0660 6.6 108 146 8 36 155600.1290 9.9 120 162 10 40
155600.0034 3.4 50 90 6 36 155600.0670 6.7 108 146 8 36 155600.1300 10 120 162 10 40
155600.0035 3.5 50 90 6 36 155600.0680 6.8 108 146 8 36 155600.1310 10.1 156 204 12 45
155600.0036 3.6 50 90 6 36 155600.0690 6.9 108 146 8 36 155600.1320 10.2 156 204 12 45
155600.0037 3.7 50 90 6 36 155600.0700 7 108 146 8 36 155600.1330 10.3 156 204 12 45
155600.0038 3.8 64 102 6 36 155600.0710 7.1 108 146 8 36 155600.1400 10.5 156 204 12 45
155600.0039 3.9 64 102 6 36 155600.0720 7.2 108 146 8 36 155600.1460 10.6 156 204 12 45
155600.0100 4 64 102 6 36 155600.0730 7.3 108 146 8 36 155600.1470 10.7 156 204 12 45
155600.0110 4.1 64 102 6 36 155600.0740 7.4 108 146 8 36 155600.1480 10.8 156 204 12 45
155600.0120 4.2 64 102 6 36 155600.0800 7.5 108 146 8 36 155600.1490 10.9 156 204 12 45
155600.0130 4.3 64 102 6 36 155600.0860 7.6 108 146 8 36 155600.1500 11 156 204 12 45
155600.0140 4.4 64 102 6 36 155600.0870 7.7 108 146 8 36 155600.1600 11.5 156 204 12 45
155600.0200 4.5 64 102 6 36 155600.0880 7.8 108 146 8 36 155600.1700 12 156 204 12 45
155600.0260 4.6 64 102 6 36 155600.0890 7.9 108 146 8 36 155600.1710 12.5 230 182 14 45
155600.0270 4.7 64 102 6 36 155600.0900 8 108 146 8 36 155600.1720 12.7 230 182 14 45
155600.0280 4.8 78 116 6 36 155600.0910 8.1 120 162 10 40 155600.1730 13 230 182 14 45
155600.0290 4.9 78 116 6 36 155600.0920 8.2 120 162 10 40 155600.1740 13.5 230 182 14 45
155600.0300 5 78 116 6 36 155600.0930 8.3 120 162 10 40 155600.1750 14 230 182 14 45
155600.0310 5.1 78 116 6 36 155600.0940 8.4 120 162 10 40 155600.1760 14.5 260 208 16 48
155600.0320 5.2 78 116 6 36 155600.1000 8.5 120 162 10 40 155600.1770 15 260 208 16 48
155600.0330 5.3 78 116 6 36 155600.1060 8.6 120 162 10 40 155600.1780 15.5 260 208 16 48
155600.0340 5.4 78 116 6 36 155600.1070 8.7 120 162 10 40 155600.1790 16 260 208 16 48
155600.0400 5.5 78 116 6 36 155600.1080 8.8 120 162 10 40 155600.1800 16.5 285 234 18 48
155600.0460 5.6 78 116 6 36 155600.1090 8.9 120 162 10 40 155600.1810 17 285 234 18 48
155600.0470 5.7 78 116 6 36 155600.1100 9 120 162 10 40 155600.1820 17.5 285 234 18 48
155600.0480 5.8 78 116 6 36 155600.1110 9.1 120 162 10 40 155600.1830 18 285 234 18 48
155600.0490 5.9 78 116 6 36 155600.1120 9.2 120 162 10 40 155600.1840 18.5 310 258 20 50
155600.0500 6 78 116 6 36 155600.1130 9.3 120 162 10 40 155600.1850 19 310 258 20 50
155600.0510 6.1 108 146 8 36 155600.1140 9.4 120 162 10 40 155600.1860 19.5 310 258 20 50
155600.0520 6.2 108 146 8 36 155600.1200 9.5 120 162 10 40 155600.1870 20 310 258 20 50
155620 Solid carbide twist drill FUTURO

VHM TiAIN DIN 5xD Z
α: 130º 6537 3
K N
Cu, AI

Type 200, 3-flute design, made of ultra-fine carbide type K/P, TiAlN, DIN 6537.
Version
Point angle 130°, narrow core, very good self-centring.
For drilling depths 5 x D.
Application
For drilling into solid material for holes that are precisely positioned and shaped. Dimension precisi-
on and surface quality correspond to the bore quality. Suited for drilling cast iron and long-chipping
Al alloys.
The 3-fluted drill permits very high feed rates. The open cutting-flute profile in combination with
the short, compact design offer maximum process security and allow use even under the most
difficult conditions, such as tapping on slanted surfaces or reboring in an interrupted step.
Order ID d1 l2 l1 d2 l3 Order ID d1 l2 l1 d2 l3 Order ID d1 l2 l1 d2 l3
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
155620.0100 3 28 66 6 36 155620.0700 6 44 82 6 36 155620.1300 8.5 61 103 10 40
155620.0200 3.3 28 66 6 36 155620.0800 6.5 53 91 8 36 155620.1400 9 61 103 10 40
155620.0300 4 36 74 6 36 155620.0900 6.8 53 91 8 36 155620.1500 10 61 103 10 40
155620.0400 4.5 36 74 6 36 155620.1000 7 53 91 8 36 155620.1600 11 71 118 12 45
155620.0500 5 44 82 6 36 155620.1100 7.8 53 91 8 36 155620.1700 11.8 71 118 12 45
155620.0600 5.5 44 82 6 36 155620.1200 8 53 91 8 36 155620.1800 12 71 118 12 45
