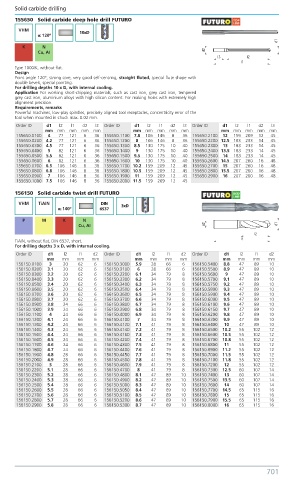

Solid carbide drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
155650 Solid carbide deep hole drill FUTURO

VHM 10xD
α: 120º
K N
Cu, AI

Type 1000IK, without flat.
Design
Point angle 120°, strong core, very good self-centring, straight fluted, special flute shape with
double bevels, special pointing.
For drilling depths 10 x D, with internal cooling.
Application For working short-chipping materials, such as cast iron, grey cast iron, tempered
grey cast iron, aluminium alloys with high silicon content. For making holes with extremely high
alignment precision.
Requirements, remarks
Powerful machines, low-play spindles, precisely aligned tool receptacles, concentricity error of the
tool when mounted in chuck max. 0.02 mm.
Order ID d1 l2 l1 d2 l3 Order ID d1 l2 l1 d2 l3 Order ID d1 l2 l1 d2 l3
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
155650.0100 4 77 121 6 36 155650.1100 7.8 106 146 8 36 155650.2100 12 159 209 12 45
155650.0200 4.2 77 121 6 36 155650.1200 8 106 146 8 36 155650.2200 12.5 183 233 14 45
155650.0300 4.5 77 121 6 36 155650.1300 8.5 130 175 10 40 155650.2300 13 183 233 14 45
155650.0400 5 82 121 6 36 155650.1400 9 130 175 10 40 155650.2400 13.5 183 233 14 45
155650.0500 5.5 82 121 6 36 155650.1500 9.5 130 175 10 40 155650.2500 14 183 233 14 45
155650.0600 6 82 121 6 36 155650.1600 10 130 175 10 40 155650.2600 14.5 207 260 16 48
155650.0700 6.5 106 146 8 36 155650.1700 10.2 159 209 12 45 155650.2700 15 207 260 16 48
155650.0800 6.8 106 146 8 36 155650.1800 10.5 159 209 12 45 155650.2800 15.5 207 260 16 48
155650.0900 7 106 146 8 36 155650.1900 11 159 209 12 45 155650.2900 16 207 260 16 48
155650.1000 7.5 106 146 8 36 155650.2000 11.5 159 209 12 45
156150 Solid carbide twist drill FUTURO
VHM TiAIN DIN 3xD
α: 140º 6537

P M K N
Cu, AI

TiAIN, without flat, DIN 6537, short.
For drilling depths 3 x D, with internal cooling.
Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2
mm mm mm mm mm mm mm mm mm mm mm mm
156150.0100 3 20 62 6 156150.3000 5.9 28 66 6 156150.5400 8.8 47 89 10
156150.0200 3.1 20 62 6 156150.3100 6 28 66 6 156150.5500 8.9 47 89 10
156150.0300 3.2 20 62 6 156150.3200 6.1 34 79 8 156150.5600 9 47 89 10
156150.0400 3.3 20 62 6 156150.3300 6.2 34 79 8 156150.5700 9.1 47 89 10
156150.0500 3.4 20 62 6 156150.3400 6.3 34 79 8 156150.5750 9.2 47 89 10
156150.0600 3.5 20 62 6 156150.3500 6.4 34 79 8 156150.5800 9.3 47 89 10
156150.0700 3.6 20 62 6 156150.3600 6.5 34 79 8 156150.5900 9.4 47 89 10
156150.0800 3.7 20 62 6 156150.3700 6.6 34 79 8 156150.6000 9.5 47 89 10
156150.0900 3.8 24 66 6 156150.3800 6.7 34 79 8 156150.6100 9.6 47 89 10
156150.1000 3.9 24 66 6 156150.3900 6.8 34 79 8 156150.6150 9.7 47 89 10
156150.1100 4 24 66 6 156150.4000 6.9 34 79 8 156150.6200 9.8 47 89 10
156150.1200 4.1 24 66 6 156150.4100 7 34 79 8 156150.6300 9.9 47 89 10
156150.1300 4.2 24 66 6 156150.4120 7.1 41 79 8 156150.6400 10 47 89 10
156150.1400 4.3 24 66 6 156150.4140 7.2 41 79 8 156150.6500 10.2 55 102 12
156150.1500 4.4 24 66 6 156150.4160 7.3 41 79 8 156150.6600 10.5 55 102 12
156150.1600 4.5 24 66 6 156150.4200 7.4 41 79 8 156150.6700 10.8 55 102 12
156150.1700 4.6 24 66 6 156150.4300 7.5 41 79 8 156150.6800 11 55 102 12
156150.1800 4.7 24 66 6 156150.4400 7.6 41 79 8 156150.6900 11.2 55 102 12
156150.1900 4.8 28 66 6 156150.4450 7.7 41 79 8 156150.7000 11.5 55 102 12
156150.2000 4.9 28 66 6 156150.4500 7.8 41 79 8 156150.7100 11.8 55 102 12
156150.2100 5 28 66 6 156150.4600 7.9 41 79 8 156150.7200 12 55 102 12
156150.2200 5.1 28 66 6 156150.4700 8 41 79 8 156150.7300 12.5 60 107 14
156150.2300 5.2 28 66 6 156150.4800 8.1 47 89 10 156150.7400 13 60 107 14
156150.2400 5.3 28 66 6 156150.4900 8.2 47 89 10 156150.7500 13.5 60 107 14
156150.2500 5.4 28 66 6 156150.5000 8.3 47 89 10 156150.7600 14 60 107 14
156150.2600 5.5 28 66 6 156150.5050 8.4 47 89 10 156150.7700 14.5 65 115 16
156150.2700 5.6 28 66 6 156150.5100 8.5 47 89 10 156150.7800 15 65 115 16
156150.2800 5.7 28 66 6 156150.5200 8.6 47 89 10 156150.7900 15.5 65 115 16
156150.2900 5.8 28 66 6 156150.5300 8.7 47 89 10 156150.8000 16 65 115 16

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 701
