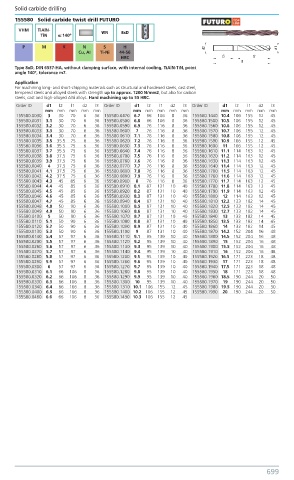

Page 708 - Benma | Blue book 5.0

Solid carbide drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
1 55580 Solid carbide twist drill FUTURO

VHM TiAlN- WN 8xD
TiN α: 140º
P M K N S H
Cu, AI Ti-Ni 44-56
HRC
Type 8xD, DIN 6537-HA, without clamping surface, with internal cooling, TiAlN-TiN, point
angle 140°, tolerance m7.
Application
For machining long- and short-chipping materials such as structural and hardened steels, cast steel,
tempered steels and alloyed steels with strength up to approx. 1200 N/mm2, but also for carbon
steels, cast and high-alloyed AlSi alloys. Hard machining up to 55 HRC.
Order ID d1 l2 l1 d2 l3 Order ID d1 l2 l1 d2 l3 Order ID d1 l2 l1 d2 l3
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
155580.0030 3 30 70 6 36 155580.0470 6.7 66 106 8 36 155580.1440 10.4 106 155 12 45
155580.0031 3.1 30 70 6 36 155580.0500 6.8 66 106 8 36 155580.1500 10.5 106 155 12 45
155580.0032 3.2 30 70 6 36 155580.0590 6.9 76 116 8 36 155580.1560 10.6 106 155 12 45
155580.0033 3.3 30 70 6 36 155580.0600 7 76 116 8 36 155580.1570 10.7 106 155 12 45
155580.0034 3.4 30 70 6 36 155580.0610 7.1 76 116 8 36 155580.1580 10.8 106 155 12 45
155580.0035 3.5 35.5 75 6 36 155580.0620 7.2 76 116 8 36 155580.1590 10.9 106 155 12 45
155580.0036 3.6 35.5 75 6 36 155580.0630 7.3 76 116 8 36 155580.1600 11 106 155 12 45
155580.0037 3.7 35.5 75 6 36 155580.0640 7.4 76 116 8 36 155580.1610 11.1 114 163 12 45
155580.0038 3.8 37.5 75 6 36 155580.0700 7.5 76 116 8 36 155580.1620 11.2 114 163 12 45
155580.0039 3.9 37.5 75 6 36 155580.0760 7.6 76 116 8 36 155580.1630 11.3 114 163 12 45
155580.0040 4 37.5 75 6 36 155580.0770 7.7 76 116 8 36 155580.1640 11.4 114 163 12 45
155580.0041 4.1 37.5 75 6 36 155580.0800 7.8 76 116 8 36 155580.1700 11.5 114 163 12 45
155580.0042 4.2 37.5 75 6 36 155580.0890 7.9 76 116 8 36 155580.1760 11.6 114 163 12 45
155580.0043 4.3 45 85 6 36 155580.0900 8 76 116 8 36 155580.1770 11.7 114 163 12 45
155580.0044 4.4 45 85 6 36 155580.0910 8.1 87 131 10 40 155580.1780 11.8 114 163 12 45
155580.0045 4.5 45 85 6 36 155580.0920 8.2 87 131 10 40 155580.1790 11.9 114 163 12 45
155580.0046 4.6 45 85 6 36 155580.0930 8.3 87 131 10 40 155580.1800 12 114 163 12 45
155580.0047 4.7 45 85 6 36 155580.0940 8.4 87 131 10 40 155580.1810 12.2 133 182 14 45
155580.0048 4.8 50 90 6 36 155580.1000 8.5 87 131 10 40 155580.1820 12.5 133 182 14 45
155580.0049 4.9 50 90 6 36 155580.1060 8.6 87 131 10 40 155580.1830 12.7 133 182 14 45
155580.0100 5 50 90 6 36 155580.1070 8.7 87 131 10 40 155580.1840 13 133 182 14 45
155580.0110 5.1 50 90 6 36 155580.1080 8.8 87 131 10 40 155580.1850 13.5 133 182 14 45
155580.0120 5.2 50 90 6 36 155580.1090 8.9 87 131 10 40 155580.1860 14 133 182 14 45
155580.0130 5.3 50 90 6 36 155580.1100 9 87 131 10 40 155580.1870 14.2 152 204 16 48
155580.0140 5.4 57 97 6 36 155580.1110 9.1 95 139 10 40 155580.1880 14.5 152 204 16 48
155580.0200 5.5 57 97 6 36 155580.1120 9.2 95 139 10 40 155580.1890 15 152 204 16 48
155580.0260 5.6 57 97 6 36 155580.1130 9.3 95 139 10 40 155580.1900 15.5 152 204 16 48
155580.0270 5.7 57 97 6 36 155580.1140 9.4 95 139 10 40 155580.1910 16 152 204 16 48
155580.0280 5.8 57 97 6 36 155580.1200 9.5 95 139 10 40 155580.1920 16.5 171 223 18 48
155580.0290 5.9 57 97 6 36 155580.1260 9.6 95 139 10 40 155580.1930 17 171 223 18 48
155580.0300 6 57 97 6 36 155580.1270 9.7 95 139 10 40 155580.1940 17.5 171 223 18 48
155580.0310 6.1 66 106 8 36 155580.1280 9.8 95 139 10 40 155580.1950 18 171 223 18 48
155580.0320 6.2 66 106 8 36 155580.1290 9.9 95 139 10 40 155580.1960 18.5 190 244 20 50
155580.0330 6.3 66 106 8 36 155580.1300 10 95 139 10 40 155580.1970 19 190 244 20 50
155580.0340 6.4 66 106 8 36 155580.1310 10.1 106 155 12 45 155580.1980 19.5 190 244 20 50
155580.0400 6.5 66 106 8 36 155580.1400 10.2 106 155 12 45 155580.1990 20 190 244 20 50
155580.0460 6.6 66 106 8 36 155580.1430 10.3 106 155 12 45
