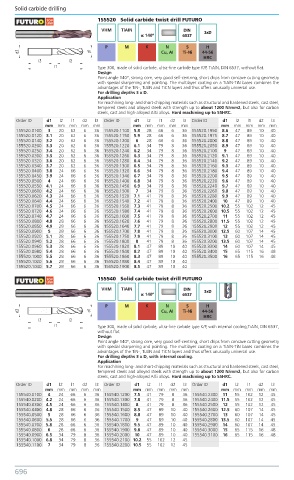

Solid carbide drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
1 55520 Solid carbide twist drill FUTURO

VHM TiAIN DIN 3xD
α: 140º 6537
P M K N S H
Cu, AI Ti-Ni 44-56
HRC
Type 300, made of solid carbide, ultra-fine carbide type K/P, TiAlN, DIN 6537, without flat.
Design
Point angle 140°, strong core, very good self-centring, short chips from concave cutting geometry
with special sharpening and pointing. The multilayer coating on a TiAlN-TiN bases combines the
advantages of the TiN-, TiAlN and TiCN layers and thus offers unusually universal use.
For drilling depths 3 x D.
Application
For machining long- and short-chipping materials such as structural and hardened steels, cast steel,
tempered steels and alloyed steels with strength up to about 1200 N/mm2, but also for carbon
steels, cast and high-alloyed AlSi alloys. Hard machining up to 55HRC.
Order ID d1 l2 l1 d2 l3 Order ID d1 l2 l1 d2 l3 Order ID d1 l2 l1 d2 l3
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
155520.0100 3 20 62 6 36 155520.1100 5.8 28 66 6 36 155520.1950 8.6 47 89 10 40
155520.0120 3.1 20 62 6 36 155520.1150 5.9 28 66 6 36 155520.1975 8.7 47 89 10 40
155520.0140 3.2 20 62 6 36 155520.1200 6 28 66 6 36 155520.2000 8.8 47 89 10 40
155520.0200 3.3 20 62 6 36 155520.1220 6.1 34 79 8 36 155520.2050 8.9 47 89 10 40
155520.0250 3.4 20 62 6 36 155520.1240 6.2 34 79 8 36 155520.2100 9 47 89 10 40
155520.0300 3.5 20 62 6 36 155520.1260 6.3 34 79 8 36 155520.2120 9.1 47 89 10 40
155520.0320 3.6 20 62 6 36 155520.1280 6.4 34 79 8 36 155520.2140 9.2 47 89 10 40
155520.0340 3.7 20 62 6 36 155520.1300 6.5 34 79 8 36 155520.2160 9.3 47 89 10 40
155520.0400 3.8 24 66 6 36 155520.1320 6.6 34 79 8 36 155520.2180 9.4 47 89 10 40
155520.0450 3.9 24 66 6 36 155520.1340 6.7 34 79 8 36 155520.2200 9.5 47 89 10 40
155520.0500 4 24 66 6 36 155520.1400 6.8 34 79 8 36 155520.2220 9.6 47 89 10 40
155520.0550 4.1 24 66 6 36 155520.1450 6.9 34 79 8 36 155520.2240 9.7 47 89 10 40
155520.0600 4.2 24 66 6 36 155520.1500 7 34 79 8 36 155520.2260 9.8 47 89 10 40
155520.0620 4.3 24 66 6 36 155520.1520 7.1 41 79 8 36 155520.2280 9.9 47 89 10 40
155520.0640 4.4 24 66 6 36 155520.1540 7.2 41 79 8 36 155520.2400 10 47 89 10 40
155520.0700 4.5 24 66 6 36 155520.1560 7.3 41 79 8 36 155520.2500 10.2 55 102 12 45
155520.0720 4.6 24 66 6 36 155520.1580 7.4 41 79 8 36 155520.2600 10.5 55 102 12 45
155520.0740 4.7 24 66 6 36 155520.1600 7.5 41 79 8 36 155520.2700 11 55 102 12 45
155520.0800 4.8 28 66 6 36 155520.1620 7.6 41 79 8 36 155520.2800 11.5 55 102 12 45
155520.0850 4.9 28 66 6 36 155520.1640 7.7 41 79 8 36 155520.2900 12 55 102 12 45
155520.0900 5 28 66 6 36 155520.1700 7.8 41 79 8 36 155520.3000 12.5 60 107 14 45
155520.0920 5.1 28 66 6 36 155520.1750 7.9 41 79 8 36 155520.3100 13 60 107 14 45
155520.0940 5.2 28 66 6 36 155520.1800 8 41 79 8 36 155520.3200 13.5 60 107 14 45
155520.0960 5.3 28 66 6 36 155520.1820 8.1 47 89 10 40 155520.3300 14 60 107 14 45
155520.0980 5.4 28 66 6 36 155520.1840 8.2 47 89 10 40 155520.3400 15 65 115 16 48
155520.1000 5.5 28 66 6 36 155520.1860 8.3 47 89 10 40 155520.3500 16 65 115 16 48
155520.1020 5.6 28 66 6 36 155520.1880 8.4 47 89 10 40
155520.1040 5.7 28 66 6 36 155520.1900 8.5 47 89 10 40
1 55540 Solid carbide twist drill FUTURO

VHM TiAIN DIN 3xD
α: 140º 6537
P M K N S H
Cu, AI Ti-Ni 44-56
HRC
Type 300, made of solid carbide, ultra-fine carbide type K/P, with internal cooling,TiAlN, DIN 6537,
without flat.
Design
Point angle 140°, strong core, very good self-centring, short chips from concave cutting geometry
with special sharpening and pointing. The multilayer coating on a TiAlN-TiN bases combines the
advantages of the TiN-, TiAlN and TiCN layers and thus offers unusually universal use.
For drilling depths 3 x D, with internal cooling.
Application
For machining long- and short-chipping materials such as structural and hardened steels, cast steel,
tempered steels and alloyed steels with strength up to about 1200 N/mm2, but also for carbon
steels, cast and high-alloyed AlSi alloys. Hard machining up to 55HRC.
Order ID d1 l2 l1 d2 l3 Order ID d1 l2 l1 d2 l3 Order ID d1 l2 l1 d2 l3
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
155540.0100 4 24 66 6 36 155540.1200 7.5 41 79 8 36 155540.2300 11 55 102 12 45
155540.0200 4.2 24 66 6 36 155540.1300 7.8 41 79 8 36 155540.2400 11.5 55 102 12 45
155540.0300 4.5 24 66 6 36 155540.1400 8 41 79 8 36 155540.2500 12 55 102 12 45
155540.0400 4.8 28 66 6 36 155540.1500 8.5 47 89 10 40 155540.2600 12.5 60 107 14 45
155540.0500 5 28 66 6 36 155540.1600 8.8 47 89 10 40 155540.2700 13 60 107 14 45
155540.0600 5.5 28 66 6 36 155540.1700 9 47 89 10 40 155540.2800 13.5 60 107 14 45
155540.0700 5.8 28 66 6 36 155540.1800 9.5 47 89 10 40 155540.2900 14 60 107 14 45
155540.0800 6 28 66 6 36 155540.1900 9.8 47 89 10 40 155540.3000 15 65 115 16 48
155540.0900 6.5 34 79 8 36 155540.2000 10 47 89 10 40 155540.3100 16 65 115 16 48
155540.1000 6.8 34 79 8 36 155540.2100 10.2 55 102 12 45
155540.1100 7 34 79 8 36 155540.2200 10.5 55 102 12 45
