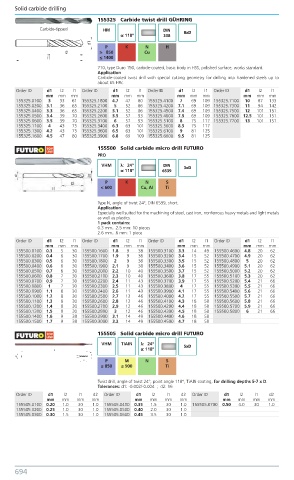

Solid carbide drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
155325 Carbide twist drill GÜHRING
Carbide-tipped HM DIN 8xD
α: 118º 338
P K N H
≥ 850 Cu
≤ 1400
710, type Duro 150, carbide-coated, basic body in HSS, polished surface, works standard.
Application
Carbide-coated twist drill with special cutting geometry for drilling into hardened steels up to
about 65 HRc.
Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1
mm mm mm mm mm mm mm mm mm mm mm mm
155325.0100 3 33 61 155325.1800 4.7 47 80 155325.4100 7 69 109 155325.7100 10 87 133
155325.0200 3.1 36 65 155325.2100 5 52 86 155325.4200 7.1 69 109 155325.7300 11 94 142
155325.0400 3.3 36 65 155325.2200 5.1 52 86 155325.4500 7.4 69 109 155325.7500 12 101 151
155325.0500 3.4 39 70 155325.2600 5.5 57 93 155325.4600 7.5 69 109 155325.7600 12.5 101 151
155325.0600 3.5 39 70 155325.3100 6 57 93 155325.5100 8 75 117 155325.7700 13 101 151
155325.1100 4 43 75 155325.3400 6.3 63 101 155325.5600 8.5 75 117
155325.1300 4.2 43 75 155325.3600 6.5 63 101 155325.6100 9 81 125
155325.1600 4.5 47 80 155325.3900 6.8 69 109 155325.6600 9.5 81 125
155500 Solid carbide micro drill FUTURO
PRO
VHM λ: 24º DIN 3xD
α: 118º 6539
P K N S
≤ 600 Cu, AI Ti

Type N, angle of twist 24°, DIN 6539, short.
Application
Especially well suited for the machining of steel, cast iron, nonferrous heavy metals and light metals
as well as plastics.
1 pack contains:
0.3 mm...2.5 mm: 10 pieces
2.6 mm...6 mm: 1 piece
Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1
mm mm mm mm mm mm mm mm mm mm mm mm
155500.0100 0.3 5 30 155500.1600 1.8 9 38 155500.3100 3.3 14 49 155500.4600 4.8 20 62
155500.0200 0.4 6 30 155500.1700 1.9 9 38 155500.3200 3.4 15 52 155500.4700 4.9 20 62
155500.0300 0.5 6 30 155500.1800 2 9 38 155500.3300 3.5 15 52 155500.4800 5 20 62
155500.0400 0.6 6 30 155500.1900 2.1 9 38 155500.3400 3.6 15 52 155500.4900 5.1 20 62
155500.0500 0.7 6 30 155500.2000 2.2 10 40 155500.3500 3.7 15 52 155500.5000 5.2 20 62
155500.0600 0.8 7 30 155500.2100 2.3 10 40 155500.3600 3.8 17 55 155500.5100 5.3 20 62
155500.0700 0.9 7 30 155500.2200 2.4 11 43 155500.3700 3.9 17 55 155500.5200 5.4 21 66
155500.0800 1 7 30 155500.2300 2.5 11 43 155500.3800 4 17 55 155500.5300 5.5 21 66
155500.0900 1.1 8 30 155500.2400 2.6 11 43 155500.3900 4.1 17 55 155500.5400 5.6 21 66
155500.1000 1.2 8 30 155500.2500 2.7 12 46 155500.4000 4.2 17 55 155500.5500 5.7 21 66
155500.1100 1.3 8 30 155500.2600 2.8 12 46 155500.4100 4.3 18 58 155500.5600 5.8 21 66
155500.1200 1.4 8 30 155500.2700 2.9 12 46 155500.4200 4.4 18 58 155500.5700 5.9 21 66
155500.1300 1.5 8 30 155500.2800 3 12 46 155500.4300 4.5 18 58 155500.5800 6 21 66
155500.1400 1.6 9 38 155500.2900 3.1 14 49 155500.4400 4.6 18 58
155500.1500 1.7 9 38 155500.3000 3.2 14 49 155500.4500 4.7 18 58
155505 Solid carbide micro drill FUTURO
VHM TiAIN λ: 24º 5xD
α: 118º
P M N S
≤ 850 ≤ 900 Ti

Twist drill, angle of twist 24°, point angle 118°, TiAlN coating, for drilling depths 5-7 x D.
Tolerances: d1: -0.002/-0.004 ; d2: h6
Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2 Order ID d1 l2 l1 d2
mm mm mm mm mm mm mm mm mm mm mm mm
155505.0100 0.20 1.0 30 1.0 155505.0400 0.35 1.5 30 1.0 155505.0700 0.50 4.0 30 1.0
155505.0200 0.25 1.0 30 1.0 155505.0500 0.40 2.0 30 1.0
155505.0300 0.30 1.5 30 1.0 155505.0600 0.45 3.5 30 1.0

694 Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch
