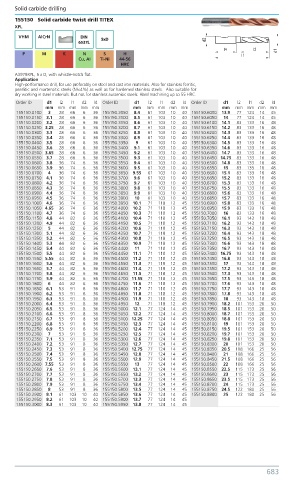

Solid carbide drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
155150 Solid carbide twist drill TITEX
XPL
VHM AlCrN DIN 5xD
6537L
P M K N S H
Cu, AI Ti-Ni 44-56
HRC
A3979XPL, 5 x D, with whistle-notch flat.
Application
High-performance drill, for use preferably on steel and cast iron materials. Also for stainless ferritic,
pearlitic and martensitic steels (NI<4%) as well as for hardened stainless steels. Also suitable for
dry working in steel materials. But not for stainless austenitic steels. Hard machining up to 55 HRC.
Order ID d1 l2 l1 d2 l4 Order ID d1 l2 l1 d2 l4 Order ID d1 l2 l1 d2 l4
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
155150.0100 3 28 66 6 36 155150.3050 8.4 61 103 10 40 155150.6000 13.9 77 124 14 45
155150.0150 3.1 28 66 6 36 155150.3100 8.5 61 103 10 40 155150.6050 14 77 124 14 45
155150.0200 3.2 28 66 6 36 155150.3150 8.6 61 103 10 40 155150.6100 14.1 83 133 16 48
155150.0250 3.25 28 66 6 36 155150.3200 8.7 61 103 10 40 155150.6150 14.2 83 133 16 48
155150.0300 3.3 28 66 6 36 155150.3250 8.8 61 103 10 40 155150.6200 14.3 83 133 16 48
155150.0350 3.4 28 66 6 36 155150.3300 8.9 61 103 10 40 155150.6250 14.4 83 133 16 48
155150.0400 3.5 28 66 6 36 155150.3350 9 61 103 10 40 155150.6300 14.5 83 133 16 48
155150.0450 3.6 28 66 6 36 155150.3400 9.1 61 103 10 40 155150.6350 14.6 83 133 16 48
155150.0500 3.65 28 66 6 36 155150.3450 9.2 61 103 10 40 155150.6400 14.7 83 133 16 48
155150.0550 3.7 28 66 6 36 155150.3500 9.3 61 103 10 40 155150.6450 14.75 83 133 16 48
155150.0600 3.8 36 74 6 36 155150.3550 9.4 61 103 10 40 155150.6500 14.8 83 133 16 48
155150.0650 3.9 36 74 6 36 155150.3600 9.5 61 103 10 40 155150.6550 15 83 133 16 48
155150.0700 4 36 74 6 36 155150.3650 9.55 61 103 10 40 155150.6600 15.1 83 133 16 48
155150.0750 4.1 36 74 6 36 155150.3700 9.6 61 103 10 40 155150.6650 15.2 83 133 16 48
155150.0800 4.2 36 74 6 36 155150.3750 9.7 61 103 10 40 155150.6700 15.3 83 133 16 48
155150.0850 4.3 36 74 6 36 155150.3800 9.8 61 103 10 40 155150.6750 15.5 83 133 16 48
155150.0900 4.4 36 74 6 36 155150.3850 9.9 61 103 10 40 155150.6800 15.6 83 133 16 48
155150.0950 4.5 36 74 6 36 155150.3900 10 61 103 10 40 155150.6850 15.7 83 133 16 48
155150.1000 4.6 36 74 6 36 155150.3950 10.1 71 118 12 45 155150.6900 15.8 83 133 16 48
155150.1050 4.65 36 74 6 36 155150.4000 10.2 71 118 12 45 155150.6950 15.9 83 133 16 48
155150.1100 4.7 36 74 6 36 155150.4050 10.3 71 118 12 45 155150.7000 16 83 133 16 48
155150.1150 4.8 44 82 6 36 155150.4100 10.4 71 118 12 45 155150.7050 16.1 93 143 18 48
155150.1200 4.9 44 82 6 36 155150.4150 10.5 71 118 12 45 155150.7100 16.2 93 143 18 48
155150.1250 5 44 82 6 36 155150.4200 10.6 71 118 12 45 155150.7150 16.3 93 143 18 48
155150.1300 5.1 44 82 6 36 155150.4250 10.7 71 118 12 45 155150.7200 16.4 93 143 18 48
155150.1350 5.2 44 82 6 36 155150.4300 10.8 71 118 12 45 155150.7250 16.5 93 143 18 48
155150.1400 5.3 44 82 6 36 155150.4350 10.9 71 118 12 45 155150.7300 16.6 93 143 18 48
155150.1450 5.4 44 82 6 36 155150.4400 11 71 118 12 45 155150.7350 16.7 93 143 18 48
155150.1500 5.5 44 82 6 36 155150.4450 11.1 71 118 12 45 155150.7400 16.75 93 143 18 48
155150.1550 5.55 44 82 6 36 155150.4500 11.2 71 118 12 45 155150.7450 16.8 93 143 18 48
155150.1600 5.6 44 82 6 36 155150.4550 11.3 71 118 12 45 155150.7500 17 93 143 18 48
155150.1650 5.7 44 82 6 36 155150.4600 11.4 71 118 12 45 155150.7550 17.2 93 143 18 48
155150.1700 5.8 44 82 6 36 155150.4650 11.5 71 118 12 45 155150.7600 17.3 93 143 18 48
155150.1750 5.9 44 82 6 36 155150.4700 11.55 71 118 12 45 155150.7650 17.5 93 143 18 48
155150.1800 6 44 82 6 36 155150.4750 11.6 71 118 12 45 155150.7700 17.6 93 143 18 48
155150.1850 6.1 53 91 8 36 155150.4800 11.7 71 118 12 45 155150.7750 17.7 93 143 18 48
155150.1900 6.2 53 91 8 36 155150.4850 11.8 71 118 12 45 155150.7800 17.8 93 143 18 48
155150.1950 6.3 53 91 8 36 155150.4900 11.9 71 118 12 45 155150.7850 18 93 143 18 48
155150.2000 6.4 53 91 8 36 155150.4950 12 71 118 12 45 155150.7900 18.2 101 153 20 50
155150.2050 6.5 53 91 8 36 155150.5000 12.1 77 124 14 45 155150.7950 18.5 101 153 20 50
155150.2100 6.6 53 91 8 36 155150.5050 12.2 77 124 14 45 155150.8000 18.7 101 153 20 50
155150.2150 6.7 53 91 8 36 155150.5100 12.25 77 124 14 45 155150.8050 18.8 101 153 20 50
155150.2200 6.8 53 91 8 36 155150.5150 12.3 77 124 14 45 155150.8100 19 101 153 20 50
155150.2250 6.9 53 91 8 36 155150.5200 12.4 77 124 14 45 155150.8150 19.5 101 153 20 50
155150.2300 7 53 91 8 36 155150.5250 12.5 77 124 14 45 155150.8200 19.7 101 153 20 50
155150.2350 7.1 53 91 8 36 155150.5300 12.6 77 124 14 45 155150.8250 19.8 101 153 20 50
155150.2400 7.2 53 91 8 36 155150.5350 12.7 77 124 14 45 155150.8300 20 101 153 20 50
155150.2450 7.3 53 91 8 36 155150.5400 12.75 77 124 14 45 155150.8350 20.5 108 166 25 56
155150.2500 7.4 53 91 8 36 155150.5450 12.8 77 124 14 45 155150.8400 21 108 166 25 56
155150.2550 7.5 53 91 8 36 155150.5500 12.9 77 124 14 45 155150.8450 21.5 108 166 25 56
155150.2600 7.55 53 91 8 36 155150.5550 13 77 124 14 45 155150.8500 22 108 166 25 56
155150.2650 7.6 53 91 8 36 155150.5600 13.1 77 124 14 45 155150.8550 22.5 115 173 25 56
155150.2700 7.7 53 91 8 36 155150.5650 13.2 77 124 14 45 155150.8600 23 115 173 25 56
155150.2750 7.8 53 91 8 36 155150.5700 13.3 77 124 14 45 155150.8650 23.5 115 173 25 56
155150.2800 7.9 53 91 8 36 155150.5750 13.4 77 124 14 45 155150.8700 24 115 173 25 56
155150.2850 8 53 91 8 36 155150.5800 13.5 77 124 14 45 155150.8750 24.5 122 180 25 56
155150.2900 8.1 61 103 10 40 155150.5850 13.6 77 124 14 45 155150.8800 25 122 180 25 56
155150.2950 8.2 61 103 10 40 155150.5900 13.7 77 124 14 45
155150.3000 8.3 61 103 10 40 155150.5950 13.8 77 124 14 45
