Solid carbide drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

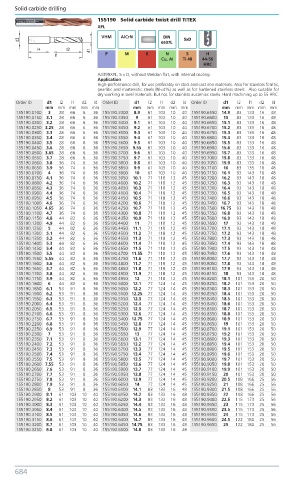

155190 Solid carbide twist drill TITEX
XPL
VHM AlCrN DIN 5xD
6537L
P M K N S H
Cu, AI Ti-Ni 44-56
HRC
A3399XPL, 5 x D, without Weldon flat, with internal cooling.
Application
High-performance drill, for use preferably on steel and cast iron materials. Also for stainless ferritic,
pearlitic and martensitic steels (NI<4%) as well as for hardened stainless steels. Also suitable for
dry working in steel materials. But not for stainless austenitic steels. Hard machining up to 55 HRC.
Order ID d1 l2 l1 d2 l4 Order ID d1 l2 l1 d2 l4 Order ID d1 l2 l1 d2 l4
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
155190.0100 3 28 66 6 36 155190.3300 8.9 61 103 10 40 155190.6550 14.9 83 133 16 48
155190.0150 3.1 28 66 6 36 155190.3350 9 61 103 10 40 155190.6600 15 83 133 16 48
155190.0200 3.2 28 66 6 36 155190.3400 9.1 61 103 10 40 155190.6650 15.1 83 133 16 48
155190.0250 3.25 28 66 6 36 155190.3450 9.2 61 103 10 40 155190.6700 15.2 83 133 16 48
155190.0300 3.3 28 66 6 36 155190.3500 9.3 61 103 10 40 155190.6750 15.3 83 133 16 48
155190.0350 3.4 28 66 6 36 155190.3550 9.4 61 103 10 40 155190.6800 15.4 83 133 16 48
155190.0400 3.5 28 66 6 36 155190.3600 9.5 61 103 10 40 155190.6850 15.5 83 133 16 48
155190.0450 3.6 28 66 6 36 155190.3650 9.55 61 103 10 40 155190.6900 15.6 83 133 16 48
155190.0500 3.65 28 66 6 36 155190.3700 9.6 61 103 10 40 155190.6950 15.7 83 133 16 48
155190.0550 3.7 28 66 6 36 155190.3750 9.7 61 103 10 40 155190.7000 15.8 83 133 16 48
155190.0600 3.8 36 74 6 36 155190.3800 9.8 61 103 10 40 155190.7050 15.9 83 133 16 48
155190.0650 3.9 36 74 6 36 155190.3850 9.9 61 103 10 40 155190.7100 16 83 133 16 48
155190.0700 4 36 74 6 36 155190.3900 10 61 103 10 40 155190.7150 16.1 93 143 18 48
155190.0750 4.1 36 74 6 36 155190.3950 10.1 71 118 12 45 155190.7200 16.2 93 143 18 48
155190.0800 4.2 36 74 6 36 155190.4000 10.2 71 118 12 45 155190.7250 16.3 93 143 18 48
155190.0850 4.3 36 74 6 36 155190.4050 10.3 71 118 12 45 155190.7300 16.4 93 143 18 48
155190.0900 4.4 36 74 6 36 155190.4100 10.4 71 118 12 45 155190.7350 16.5 93 143 18 48
155190.0950 4.5 36 74 6 36 155190.4150 10.5 71 118 12 45 155190.7400 16.6 93 143 18 48
155190.1000 4.6 36 74 6 36 155190.4200 10.6 71 118 12 45 155190.7450 16.7 93 143 18 48
155190.1050 4.65 36 74 6 36 155190.4250 10.7 71 118 12 45 155190.7500 16.75 93 143 18 48
155190.1100 4.7 36 74 6 36 155190.4300 10.8 71 118 12 45 155190.7550 16.8 93 143 18 48
155190.1150 4.8 44 82 6 36 155190.4350 10.9 71 118 12 45 155190.7600 16.9 93 143 18 48
155190.1200 4.9 44 82 6 36 155190.4400 11 71 118 12 45 155190.7650 17 93 143 18 48
155190.1250 5 44 82 6 36 155190.4450 11.1 71 118 12 45 155190.7700 17.1 93 143 18 48
155190.1300 5.1 44 82 6 36 155190.4500 11.2 71 118 12 45 155190.7750 17.2 93 143 18 48
155190.1350 5.2 44 82 6 36 155190.4550 11.3 71 118 12 45 155190.7800 17.3 93 143 18 48
155190.1400 5.3 44 82 6 36 155190.4600 11.4 71 118 12 45 155190.7850 17.4 93 143 18 48
155190.1450 5.4 44 82 6 36 155190.4650 11.5 71 118 12 45 155190.7900 17.5 93 143 18 48
155190.1500 5.5 44 82 6 36 155190.4700 11.55 71 118 12 45 155190.7950 17.6 93 143 18 48
155190.1550 5.55 44 82 6 36 155190.4750 11.6 71 118 12 45 155190.8000 17.7 93 143 18 48
155190.1600 5.6 44 82 6 36 155190.4800 11.7 71 118 12 45 155190.8050 17.8 93 143 18 48
155190.1650 5.7 44 82 6 36 155190.4850 11.8 71 118 12 45 155190.8100 17.9 93 143 18 48
155190.1700 5.8 44 82 6 36 155190.4900 11.9 71 118 12 45 155190.8150 18 93 143 18 48
155190.1750 5.9 44 82 6 36 155190.4950 12 71 118 12 45 155190.8200 18.1 101 153 20 50
155190.1800 6 44 82 6 36 155190.5000 12.1 77 124 14 45 155190.8250 18.2 101 153 20 50
155190.1850 6.1 53 91 8 36 155190.5050 12.2 77 124 14 45 155190.8300 18.3 101 153 20 50
155190.1900 6.2 53 91 8 36 155190.5100 12.25 77 124 14 45 155190.8350 18.4 101 153 20 50
155190.1950 6.3 53 91 8 36 155190.5150 12.3 77 124 14 45 155190.8400 18.5 101 153 20 50
155190.2000 6.4 53 91 8 36 155190.5200 12.4 77 124 14 45 155190.8450 18.6 101 153 20 50
155190.2050 6.5 53 91 8 36 155190.5250 12.5 77 124 14 45 155190.8500 18.7 101 153 20 50
155190.2100 6.6 53 91 8 36 155190.5300 12.6 77 124 14 45 155190.8550 18.8 101 153 20 50
155190.2150 6.7 53 91 8 36 155190.5400 12.75 77 124 14 45 155190.8600 18.9 101 153 20 50
155190.2200 6.8 53 91 8 36 155190.5450 12.8 77 124 14 45 155190.8650 19 101 153 20 50
155190.2250 6.9 53 91 8 36 155190.5500 12.9 77 124 14 45 155190.8700 19.1 101 153 20 50
155190.2300 7 53 91 8 36 155190.5550 13 77 124 14 45 155190.8750 19.2 101 153 20 50
155190.2350 7.1 53 91 8 36 155190.5600 13.1 77 124 14 45 155190.8800 19.3 101 153 20 50
155190.2400 7.2 53 91 8 36 155190.5650 13.2 77 124 14 45 155190.8850 19.4 101 153 20 50
155190.2450 7.3 53 91 8 36 155190.5700 13.3 77 124 14 45 155190.8900 19.5 101 153 20 50
155190.2500 7.4 53 91 8 36 155190.5750 13.4 77 124 14 45 155190.8950 19.6 101 153 20 50
155190.2550 7.5 53 91 8 36 155190.5800 13.5 77 124 14 45 155190.9000 19.7 101 153 20 50
155190.2600 7.55 53 91 8 36 155190.5850 13.6 77 124 14 45 155190.9050 19.8 101 153 20 50
155190.2650 7.6 53 91 8 36 155190.5900 13.7 77 124 14 45 155190.9100 19.9 101 153 20 50
155190.2700 7.7 53 91 8 36 155190.5950 13.8 77 124 14 45 155190.9150 20 101 153 20 50
155190.2750 7.8 53 91 8 36 155190.6000 13.9 77 124 14 45 155190.9200 20.5 108 166 25 56
155190.2800 7.9 53 91 8 36 155190.6050 14 77 124 14 45 155190.9250 21 108 166 25 56
155190.2850 8 53 91 8 36 155190.6100 14.1 83 133 16 48 155190.9300 21.5 108 166 25 56
155190.2900 8.1 61 103 10 40 155190.6150 14.2 83 133 16 48 155190.9350 22 108 166 25 56
155190.2950 8.2 61 103 10 40 155190.6200 14.3 83 133 16 48 155190.9400 22.5 115 173 25 56
155190.3000 8.3 61 103 10 40 155190.6250 14.4 83 133 16 48 155190.9450 23 115 173 25 56
155190.3050 8.4 61 103 10 40 155190.6300 14.5 83 133 16 48 155190.9500 23.5 115 173 25 56
155190.3100 8.5 61 103 10 40 155190.6350 14.6 83 133 16 48 155190.9550 24 115 173 25 56
155190.3150 8.6 61 103 10 40 155190.6400 14.7 83 133 16 48 155190.9600 24.5 122 180 25 56
155190.3200 8.7 61 103 10 40 155190.6450 14.75 83 133 16 48 155190.9650 25 122 180 25 56
155190.3250 8.8 61 103 10 40 155190.6500 14.8 83 133 16 48
