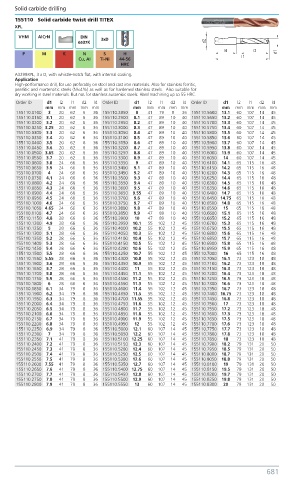

Page 690 - Benma | Blue book 5.0

Solid carbide drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
155110 Solid carbide twist drill TITEX
XPL
VHM AlCrN DIN 3xD
6537K
P M K N S H
Cu, AI Ti-Ni 44-56
HRC
A3299XPL, 3 x D, with whistle-notch flat, with internal cooling.
Application
High-performance drill, for use preferably on steel and cast iron materials. Also for stainless ferritic,
pearlitic and martensitic steels (NI<4%) as well as for hardened stainless steels. Also suitable for
dry working in steel materials. But not for stainless austenitic steels. Hard machining up to 55 HRC.
Order ID d1 l2 l1 d2 l4 Order ID d1 l2 l1 d2 l4 Order ID d1 l2 l1 d2 l4
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
155110.0100 3 20 62 6 36 155110.2850 8 41 79 8 36 155110.5600 13.1 60 107 14 45
155110.0150 3.1 20 62 6 36 155110.2900 8.1 47 89 10 40 155110.5650 13.2 60 107 14 45
155110.0200 3.2 20 62 6 36 155110.2950 8.2 47 89 10 40 155110.5700 13.3 60 107 14 45
155110.0250 3.25 20 62 6 36 155110.3000 8.3 47 89 10 40 155110.5750 13.4 60 107 14 45
155110.0300 3.3 20 62 6 36 155110.3050 8.4 47 89 10 40 155110.5800 13.5 60 107 14 45
155110.0350 3.4 20 62 6 36 155110.3100 8.5 47 89 10 40 155110.5850 13.6 60 107 14 45
155110.0400 3.5 20 62 6 36 155110.3150 8.6 47 89 10 40 155110.5900 13.7 60 107 14 45
155110.0450 3.6 20 62 6 36 155110.3200 8.7 47 89 10 40 155110.5950 13.8 60 107 14 45
155110.0500 3.65 20 62 6 36 155110.3250 8.8 47 89 10 40 155110.6000 13.9 60 107 14 45
155110.0550 3.7 20 62 6 36 155110.3300 8.9 47 89 10 40 155110.6050 14 60 107 14 45
155110.0600 3.8 24 66 6 36 155110.3350 9 47 89 10 40 155110.6100 14.1 65 115 16 48
155110.0650 3.9 24 66 6 36 155110.3400 9.1 47 89 10 40 155110.6150 14.2 65 115 16 48
155110.0700 4 24 66 6 36 155110.3450 9.2 47 89 10 40 155110.6200 14.3 65 115 16 48
155110.0750 4.1 24 66 6 36 155110.3500 9.3 47 89 10 40 155110.6250 14.4 65 115 16 48
155110.0800 4.2 24 66 6 36 155110.3550 9.4 47 89 10 40 155110.6300 14.5 65 115 16 48
155110.0850 4.3 24 66 6 36 155110.3600 9.5 47 89 10 40 155110.6350 14.6 65 115 16 48
155110.0900 4.4 24 66 6 36 155110.3650 9.55 47 89 10 40 155110.6400 14.7 65 115 16 48
155110.0950 4.5 24 66 6 36 155110.3700 9.6 47 89 10 40 155110.6450 14.75 65 115 16 48
155110.1000 4.6 24 66 6 36 155110.3750 9.7 47 89 10 40 155110.6500 14.8 65 115 16 48
155110.1050 4.65 24 66 6 36 155110.3800 9.8 47 89 10 40 155110.6550 15 65 115 16 48
155110.1100 4.7 24 66 6 36 155110.3850 9.9 47 89 10 40 155110.6600 15.1 65 115 16 48
155110.1150 4.8 28 66 6 36 155110.3900 10 47 89 10 40 155110.6650 15.2 65 115 16 48
155110.1200 4.9 28 66 6 36 155110.3950 10.1 55 102 12 45 155110.6700 15.3 65 115 16 48
155110.1250 5 28 66 6 36 155110.4000 10.2 55 102 12 45 155110.6750 15.5 65 115 16 48
155110.1300 5.1 28 66 6 36 155110.4050 10.3 55 102 12 45 155110.6800 15.6 65 115 16 48
155110.1350 5.2 28 66 6 36 155110.4100 10.4 55 102 12 45 155110.6850 15.7 65 115 16 48
155110.1400 5.3 28 66 6 36 155110.4150 10.5 55 102 12 45 155110.6900 15.8 65 115 16 48
155110.1450 5.4 28 66 6 36 155110.4200 10.6 55 102 12 45 155110.6950 15.9 65 115 16 48
155110.1500 5.5 28 66 6 36 155110.4250 10.7 55 102 12 45 155110.7000 16 65 115 16 48
155110.1550 5.55 28 66 6 36 155110.4300 10.8 55 102 12 45 155110.7050 16.1 73 123 18 48
155110.1600 5.6 28 66 6 36 155110.4350 10.9 55 102 12 45 155110.7100 16.2 73 123 18 48
155110.1650 5.7 28 66 6 36 155110.4400 11 55 102 12 45 155110.7150 16.3 73 123 18 48
155110.1700 5.8 28 66 6 36 155110.4450 11.1 55 102 12 45 155110.7200 16.4 73 123 18 48
155110.1750 5.9 28 66 6 36 155110.4500 11.2 55 102 12 45 155110.7250 16.5 73 123 18 48
155110.1800 6 28 66 6 36 155110.4550 11.3 55 102 12 45 155110.7300 16.6 73 123 18 48
155110.1850 6.1 34 79 8 36 155110.4600 11.4 55 102 12 45 155110.7350 16.7 73 123 18 48
155110.1900 6.2 34 79 8 36 155110.4650 11.5 55 102 12 45 155110.7400 16.75 73 123 18 48
155110.1950 6.3 34 79 8 36 155110.4700 11.55 55 102 12 45 155110.7450 16.8 73 123 18 48
155110.2000 6.4 34 79 8 36 155110.4750 11.6 55 102 12 45 155110.7500 17 73 123 18 48
155110.2050 6.5 34 79 8 36 155110.4800 11.7 55 102 12 45 155110.7550 17.2 73 123 18 48
155110.2100 6.6 34 79 8 36 155110.4850 11.8 55 102 12 45 155110.7600 17.3 73 123 18 48
155110.2150 6.7 34 79 8 36 155110.4900 11.9 55 102 12 45 155110.7650 17.5 73 123 18 48
155110.2200 6.8 34 79 8 36 155110.4950 12 55 102 12 45 155110.7700 17.6 73 123 18 48
155110.2250 6.9 34 79 8 36 155110.5000 12.1 60 107 14 45 155110.7750 17.7 73 123 18 48
155110.2300 7 34 79 8 36 155110.5050 12.2 60 107 14 45 155110.7800 17.8 73 123 18 48
155110.2350 7.1 41 79 8 36 155110.5100 12.25 60 107 14 45 155110.7850 18 73 123 18 48
155110.2400 7.2 41 79 8 36 155110.5150 12.3 60 107 14 45 155110.7900 18.2 79 131 20 50
155110.2450 7.3 41 79 8 36 155110.5200 12.4 60 107 14 45 155110.7950 18.5 79 131 20 50
155110.2500 7.4 41 79 8 36 155110.5250 12.5 60 107 14 45 155110.8000 18.7 79 131 20 50
155110.2550 7.5 41 79 8 36 155110.5300 12.6 60 107 14 45 155110.8050 18.8 79 131 20 50
155110.2600 7.55 41 79 8 36 155110.5350 12.7 60 107 14 45 155110.8100 19 79 131 20 50
155110.2650 7.6 41 79 8 36 155110.5400 12.75 60 107 14 45 155110.8150 19.5 79 131 20 50
155110.2700 7.7 41 79 8 36 155110.5450 12.8 60 107 14 45 155110.8200 19.7 79 131 20 50
155110.2750 7.8 41 79 8 36 155110.5500 12.9 60 107 14 45 155110.8250 19.8 79 131 20 50
155110.2800 7.9 41 79 8 36 155110.5550 13 60 107 14 45 155110.8300 20 79 131 20 50
