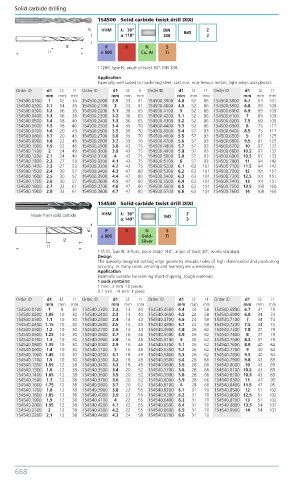

Solid carbide drilling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
1 54500 Solid carbide twist drill DIXI

VHM λ: 30º DIN 8xD Z
α: 118º 338 2
P K N S
≤ 600 Cu, AI Ti

1126R, type N, angle of twist 30°, DIN 338.
Application
Especially well suited to machining steel, cast iron, non-ferrous metals, light alloys and plastics.
Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1
mm mm mm mm mm mm mm mm mm mm mm mm
154500.0100 1 12 34 154500.2000 2.9 33 61 154500.3900 4.8 52 86 154500.5800 6.7 63 101
154500.0200 1.1 14 36 154500.2100 3 33 61 154500.4000 4.9 52 86 154500.5900 6.8 69 109
154500.0300 1.2 16 38 154500.2200 3.1 36 65 154500.4100 5 52 86 154500.6000 6.9 69 109
154500.0400 1.3 16 38 154500.2300 3.2 36 65 154500.4200 5.1 52 86 154500.6100 7 69 109
154500.0500 1.4 18 40 154500.2400 3.3 36 65 154500.4300 5.2 52 86 154500.6200 7.5 69 109
154500.0600 1.5 18 40 154500.2500 3.4 39 70 154500.4400 5.3 52 86 154500.6300 8 75 117
154500.0700 1.6 20 43 154500.2600 3.5 39 70 154500.4500 5.4 57 93 154500.6400 8.5 75 117
154500.0800 1.7 20 43 154500.2700 3.6 39 70 154500.4600 5.5 57 93 154500.6500 9 81 125
154500.0900 1.8 22 46 154500.2800 3.7 39 70 154500.4700 5.6 57 93 154500.6600 9.5 81 125
154500.1000 1.9 22 46 154500.2900 3.8 43 75 154500.4800 5.7 57 93 154500.6700 10 87 133
154500.1100 2 24 49 154500.3000 3.9 43 75 154500.4900 5.8 57 93 154500.6800 10.2 87 133
154500.1200 2.1 24 49 154500.3100 4 43 75 154500.5000 5.9 57 93 154500.6900 10.5 87 133
154500.1300 2.2 27 53 154500.3200 4.1 43 75 154500.5100 6 57 93 154500.7000 11 94 142
154500.1400 2.3 27 53 154500.3300 4.2 43 75 154500.5200 6.1 63 101 154500.7100 11.5 94 142
154500.1500 2.4 30 57 154500.3400 4.3 47 80 154500.5300 6.2 63 101 154500.7200 12 101 151
154500.1600 2.5 30 57 154500.3500 4.4 47 80 154500.5400 6.3 63 101 154500.7300 12.5 101 151
154500.1700 2.6 30 57 154500.3600 4.5 47 80 154500.5500 6.4 63 101 154500.7400 13 101 151
154500.1800 2.7 33 61 154500.3700 4.6 47 80 154500.5600 6.5 63 101 154500.7500 13.5 108 160
154500.1900 2.8 33 61 154500.3800 4.7 47 80 154500.5700 6.6 63 101 154500.7600 14 108 160
1 54540 Solid carbide twist drill DIXI

Made from solid carbide VHM λ: 30º 3xD Z
α: 140º 3
P K N S
≤ 600 Gold- Ti
Silver
1151R, Type N, 3-flute, point angle 140°, angle of twist 30°, works standard.
Design
The specially designed cutting edge geometry ensures holes of high dimensional and positioning
accuracy. In many cases, centring and reaming are unnecessary.
Application
Especially suitable for working short-chipping, tough materials.
1 pack contains:
1 mm...3 mm: 10 pieces
3.1 mm...14 mm: 1 piece
Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1 Order ID d1 l2 l1
mm mm mm mm mm mm mm mm mm mm mm mm
154540.0100 1 8 30 154540.2300 2.2 13 40 154540.4500 4.4 24 58 154540.6800 6.7 31 70
154540.0200 1.05 10 30 154540.2400 2.3 13 40 154540.4600 4.5 24 58 154540.6900 6.8 34 74
154540.0300 1.1 10 30 154540.2500 2.4 14 43 154540.4700 4.6 24 58 154540.7100 7 34 74
154540.0400 1.15 10 30 154540.2600 2.5 14 43 154540.4800 4.7 24 58 154540.7200 7.5 34 74
154540.0500 1.2 10 30 154540.2700 2.6 14 43 154540.4900 4.8 26 62 154540.7300 7.8 37 79
154540.0600 1.25 10 30 154540.2800 2.7 16 46 154540.5000 4.9 26 62 154540.7400 8 37 79
154540.0700 1.3 10 30 154540.2900 2.8 16 46 154540.5100 5 26 62 154540.7500 8.5 37 79
154540.0800 1.35 10 30 154540.3000 2.9 16 46 154540.5200 5.1 26 62 154540.7600 8.8 40 84
154540.0900 1.4 10 30 154540.3100 3 16 46 154540.5300 5.2 26 62 154540.7700 9 40 84
154540.1000 1.45 10 30 154540.3200 3.1 18 49 154540.5400 5.3 26 62 154540.7800 9.5 40 84
154540.1100 1.5 10 30 154540.3300 3.2 18 49 154540.5500 5.4 28 66 154540.7900 9.8 43 89
154540.1200 1.55 12 38 154540.3400 3.3 18 49 154540.5600 5.5 28 66 154540.8000 10 43 89
154540.1300 1.6 12 38 154540.3500 3.4 20 52 154540.5700 5.6 28 66 154540.8100 10.2 43 89
154540.1400 1.65 12 38 154540.3600 3.5 20 52 154540.5900 5.8 28 66 154540.8200 10.5 43 89
154540.1500 1.7 12 38 154540.3700 3.6 20 52 154540.6000 5.9 28 66 154540.8300 11 47 95
154540.1600 1.75 12 38 154540.3800 3.7 20 52 154540.6100 6 28 66 154540.8400 11.5 47 95
154540.1700 1.8 12 38 154540.3900 3.8 22 55 154540.6200 6.1 31 70 154540.8500 12 51 102
154540.1800 1.85 12 38 154540.4000 3.9 22 55 154540.6300 6.2 31 70 154540.8600 12.5 51 102
154540.1900 1.9 12 38 154540.4100 4 22 55 154540.6400 6.3 31 70 154540.8700 13 51 102
154540.2000 1.95 12 38 154540.4200 4.1 22 55 154540.6500 6.4 31 70 154540.8800 13.5 54 107
154540.2100 2 12 38 154540.4300 4.2 22 55 154540.6600 6.5 31 70 154540.8900 14 54 107
154540.2200 2.1 12 38 154540.4400 4.3 24 58 154540.6700 6.6 31 70
