Solid carbide milling / PKD milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

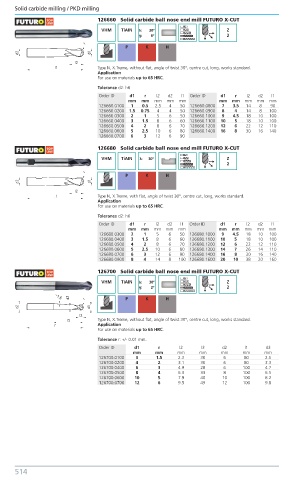

1 26660 Solid carbide ball nose end mill FUTURO X-CUT

VHM TiAIN λ: 30º Z
γ: 6º 2
P K H

Type N, X.Treme, without flat, angle of twist 30°, centre cut, long, works standard.
Application
For use on materials up to 65 HRC.
Tolerance d2: h6
Order ID d1 r l2 d2 l1 Order ID d1 r l2 d2 l1
mm mm mm mm mm mm mm mm mm mm
126660.0100 1 0.5 2.5 4 50 126660.0800 7 3.5 14 8 90
126660.0200 1.5 0.75 4 4 50 126660.0900 8 4 14 8 100
126660.0300 2 1 5 6 50 126660.1000 9 4.5 18 10 100
126660.0400 3 1.5 8 6 60 126660.1100 10 5 18 10 100
126660.0500 4 2 8 6 70 126660.1200 12 6 22 12 110
126660.0600 5 2.5 10 6 80 126660.1400 16 8 30 16 140
126660.0700 6 3 12 6 90
1 26680 Solid carbide ball nose end mill FUTURO X-CUT
VHM TiAIN λ: 30º Z
2

P K H

Type N, X.Treme, with flat, angle of twist 30°, centre cut, long, works standard.
Application
For use on materials up to 65 HRC.
Tolerance d2: h6
Order ID d1 r l2 d2 l1 Order ID d1 r l2 d2 l1
mm mm mm mm mm mm mm mm mm mm
126680.0300 2 1 5 6 50 126680.1000 9 4.5 18 10 100
126680.0400 3 1.5 8 6 60 126680.1100 10 5 18 10 100
126680.0500 4 2 8 6 70 126680.1200 12 6 22 12 110
126680.0600 5 2.5 10 6 80 126680.1300 14 7 26 14 110
126680.0700 6 3 12 6 90 126680.1400 16 8 30 16 140
126680.0900 8 4 14 8 100 126680.1600 20 10 38 20 160
1 26700 Solid carbide ball nose end mill FUTURO X-CUT
VHM TiAIN λ: 30º Z
γ: 2º 2

P K H

Type N, X.Treme, without flat, angle of twist 30°, centre cut, long, works standard.
Application
For use on materials up to 65 HRC.
Tolerance r: +/- 0.01 mm.
Order ID d1 r l2 l3 d2 l1 d3
mm mm mm mm mm mm mm
126700.0100 3 1.5 2.3 30 6 80 2.5
126700.0200 4 2 3.1 30 6 80 3.3
126700.0400 6 3 4.9 28 6 100 4.7
126700.0500 8 4 6.3 33 8 100 6.5
126700.0600 10 5 7.9 40 10 100 8.2
126700.0700 12 6 9.5 49 12 100 9.8
