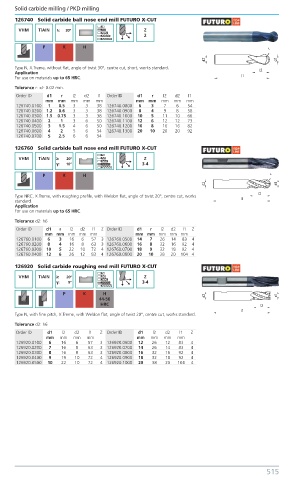

Page 524 - Benma | Blue book 5.0

Solid carbide milling / PKD milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
1 26740 Solid carbide ball nose end mill FUTURO X-CUT

VHM TiAIN λ: 30º Z
2
P K H

Type N, X.Treme, without flat, angle of twist 30°, centre cut, short, works standard.
Application
For use on materials up to 65 HRC.
Tolerance r: +/- 0.02 mm.
Order ID d1 r l2 d2 l1 Order ID d1 r l2 d2 l1
mm mm mm mm mm mm mm mm mm mm
126740.0100 1 0.5 3 3 38 126740.0800 6 3 7 6 54
126740.0200 1.2 0.6 3 3 38 126740.0900 8 4 9 8 58
126740.0300 1.5 0.75 3 3 38 126740.1000 10 5 11 10 66
126740.0400 2 1 3 6 50 126740.1100 12 6 12 12 73
126740.0500 3 1.5 4 6 50 126740.1200 16 8 16 16 82
126740.0600 4 2 5 6 54 126740.1300 20 10 20 20 92
126740.0700 5 2.5 6 6 54
1 26760 Solid carbide ball nose end mill FUTURO X-CUT
VHM TiAIN λ: 20º Z
γ: 10º 3-4

P K H

Type NRC, X.Treme, with roughing profile, with Weldon flat, angle of twist 20°, centre cut, works
standard.
Application
For use on materials up to 65 HRC.
Tolerance d2: h6
Order ID d1 r l2 d2 l1 Z Order ID d1 r l2 d2 l1 Z
mm mm mm mm mm mm mm mm mm mm
126760.0100 6 3 16 6 57 3 126760.0500 14 7 26 14 83 4
126760.0200 8 4 16 8 63 3 126760.0600 16 8 32 16 92 4
126760.0300 10 5 22 10 72 4 126760.0700 18 9 32 18 92 4
126760.0400 12 6 26 12 83 4 126760.0800 20 10 38 20 104 4
1 26920 Solid carbide roughing end mill FUTURO X-CUT
VHM TiAIN λ: 20º Z
γ: 9º 3-4
P K H
44-56
HRC
Type N, with fine pitch, X.Treme, with Weldon flat, angle of twist 20°, centre cut, works standard.
Tolerance d2: h6
Order ID d1 l2 d2 l1 Z Order ID d1 l2 d2 l1 Z
mm mm mm mm mm mm mm mm
126920.0100 6 16 6 57 3 126920.0600 12 26 12 83 4
126920.0200 7 16 8 63 3 126920.0700 14 26 14 83 4
126920.0300 8 16 8 63 3 126920.0800 16 32 16 92 4
126920.0400 9 19 10 72 4 126920.0900 18 32 18 92 4
126920.0500 10 22 10 72 4 126920.1000 20 38 20 104 4

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 515
