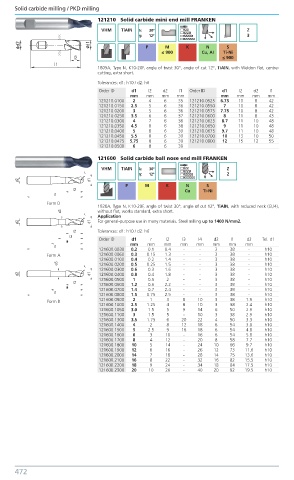

Solid carbide milling / PKD milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
121210 Solid carbide mini end mill FRANKEN

VHM TiAIN λ: 30º Z
γ: 12º 3
P M K N S
≤ 900 Cu, AI Ti-Ni
≤ 900
1805A, Type N, K10-20F, angle of twist 30°, angle of cut 12°, TiAlN, with Weldon flat, centre-
cutting, extra short.
Tolerances: d1: h10 / d2: h6
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
121210.0100 2 4 6 35 121210.0525 6.75 10 8 42
121210.0150 2.5 5 6 36 121210.0550 7 10 8 42
121210.0200 3 5 6 36 121210.0575 7.75 10 8 42
121210.0250 3.5 6 6 37 121210.0600 8 11 8 43
121210.0300 4 7 6 38 121210.0625 8.7 11 10 48
121210.0350 4.5 8 6 38 121210.0650 9 11 10 48
121210.0400 5 8 6 39 121210.0675 9.7 11 10 48
121210.0450 5.5 8 6 39 121210.0700 10 13 10 50
121210.0475 5.75 8 6 39 121210.0800 12 15 12 55
121210.0500 6 8 6 39
121600 Solid carbide ball nose end mill FRANKEN
VHM TiAIN λ: 30º Z
γ: 12º 2

P M K N S
Cu Ti-Ni
Form D
1820A, Type N, K10-20F, angle of twist 30°, angle of cut 12°, TiAlN, with reduced neck (l3,l4),
without flat, works standard, extra short.
Application
For general-purpose use in many materials. Steel milling up to 1400 N/mm2.
Tolerances: d1: h10 / d2: h6
Order ID d1 r l2 l3 l4 d2 l1 d3 Tol. d1
mm mm mm mm mm mm mm mm
121600.0030 0.2 0.1 0.4 - - 3 38 - h10
Form A 121600.0060 0.3 0.15 1.3 - - 3 38 - h10
121600.0100 0.4 0.2 1.4 - - 3 38 - h10
121600.0200 0.5 0.25 1.5 - - 3 38 - h10
121600.0300 0.6 0.3 1.6 - - 3 38 - h10
121600.0400 0.8 0.4 1.8 - - 3 38 - h10
121600.0500 1 0.5 2 - - 3 38 - h10
121600.0600 1.2 0.6 2.2 - - 3 38 - h10
121600.0700 1.4 0.7 2.4 - - 3 38 - h10
121600.0800 1.5 0.75 2.5 - - 3 38 - h10
Form B 121600.0900 2 1 3 8 10 3 38 1.9 h10
121600.1000 2.5 1.25 4 8 10 3 38 2.4 h10
121600.1050 3.0 1.5 5 9 14 6 50 2.9 h10
121600.1100 3 1.5 5 - 10 3 38 2.9 h10
121600.1300 3.5 1.75 6 20 22 4 50 3.3 h10
121600.1400 4 2 8 12 18 6 54 3.8 h10
121600.1500 5 2.5 9 16 18 6 54 4.8 h10
121600.1600 6 3 10 - 16 6 54 5.8 h10
121600.1700 8 4 12 - 20 8 58 7.7 h10
121600.1800 10 5 14 - 24 10 66 9.7 h10
121600.1900 12 6 16 - 26 12 73 11.6 h10
121600.2000 14 7 18 - 28 14 75 13.6 h10
121600.2100 16 8 22 - 32 16 82 15.5 h10
121600.2200 18 9 24 - 34 18 84 17.5 h10
121600.2300 20 10 26 - 40 20 92 19.5 h10
