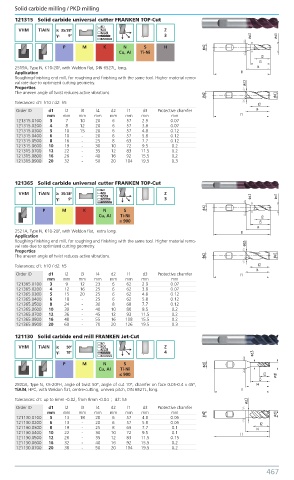

Page 476 - Benma | Blue book 5.0

Solid carbide milling / PKD milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
121315 Solid carbide universal cutter FRANKEN TOP-Cut

VHM TiAIN λ: 35/38º Z
γ: 9º 3
P M K N S H
Cu, AI Ti-Ni

2519A, Type N, K10-20F, with Weldon flat, DIN 6527L, long.
Application
Roughing-finishing end mill, for roughing and finishing with the same tool. Higher material remo-
val rate due to optimized cutting geometry.
Properties
The uneven angle of twist reduces active vibrations.
Tolerances: d1: h10 / d2: h5
Order ID d1 l2 l3 l4 d2 l1 d3 Protective chamfer
mm mm mm mm mm mm mm mm
121315.0100 3 7 10 20 6 57 2.9 0.07
121315.0200 4 8 12 20 6 57 3.8 0.07
121315.0300 5 10 15 20 6 57 4.8 0.12
121315.0400 6 10 - 20 6 57 5.8 0.12
121315.0500 8 16 - 25 8 63 7.7 0.12
121315.0600 10 19 - 30 10 72 9.5 0.2
121315.0700 12 22 - 35 12 83 11.5 0.2
121315.0800 16 26 - 40 16 92 15.5 0.2
121315.0900 20 32 - 50 20 104 19.5 0.3

121365 Solid carbide universal cutter FRANKEN TOP-Cut
VHM TiAIN λ: 35/38º Z
γ: 9º 3
P M K N S
Cu, AI Ti-Ni
≤ 900
2521A, Type N, K10-20F, with Weldon flat, extra long.
Application
Roughing-finishing end mill, for roughing and finishing with the same tool. Higher material remo-
val rate due to optimized cutting geometry.
Properties
The uneven angle of twist reduces active vibrations.
Tolerances: d1: h10 / d2: h5
Order ID d1 l2 l3 l4 d2 l1 d3 Protective chamfer
mm mm mm mm mm mm mm mm
121365.0100 3 9 12 23 6 62 2.9 0.07
121365.0200 4 12 16 25 6 62 3.8 0.07
121365.0300 5 15 20 25 6 62 4.8 0.12
121365.0400 6 18 - 25 6 62 5.8 0.12
121365.0500 8 24 - 30 8 68 7.7 0.12
121365.0600 10 30 - 40 10 80 9.5 0.2
121365.0700 12 36 - 45 12 93 11.5 0.2
121365.0800 16 48 - 55 16 108 15.5 0.2
121365.0900 20 60 - 70 20 126 19.5 0.3
121130 Solid carbide end mill FRANKEN Jet-Cut
VHM TiAIN λ: 50º Z
γ: 10º 4
P M N S
Cu, AI Ti-Ni
≤ 900
2820A, Type N, K5-20FH, angle of twist 50°, angle of cut 10°, chamfer on face 0.05-0.4 x 45°,
TiAlN, HPC, with Weldon flat, centre-cutting, uneven pitch, DIN 6527L, long.
Tolerances: d1: up to 6mm -0.02, from 8mm -0.04 ; d2: h5
Order ID d1 l2 l3 l4 d2 l1 d3 Protective chamfer
mm mm mm mm mm mm mm mm
121130.0100 5 13 18 20 6 57 4.8 0.05
121130.0200 6 13 - 20 6 57 5.8 0.05
121130.0300 8 19 - 25 8 63 7.7 0.1
121130.0400 10 22 - 30 10 72 9.5 0.1
121130.0500 12 26 - 35 12 83 11.5 0.15
121130.0600 16 32 - 40 16 92 15.5 0.2
121130.0700 20 38 - 50 20 104 19.5 0.2
